Silver Tilting Type Induction Industrial Metal Melting Furnace 15-160 KW
1.Main Features
1.2 The industrial metal melting furnace has alarm function and fault detection function, such as
fault state protection and display including overcurrent, overvoltage and water shortage, etc.
1.3 The main power devices of the induction industrial metal melting furnace are all German
Siemens brands, and the main electronic components are imported products (Motorola (diode),
NEC (triode), ST (three terminal voltage regulator), FAIRCHILD, ON etc., which make them work stably
and have higher reliability and durability.

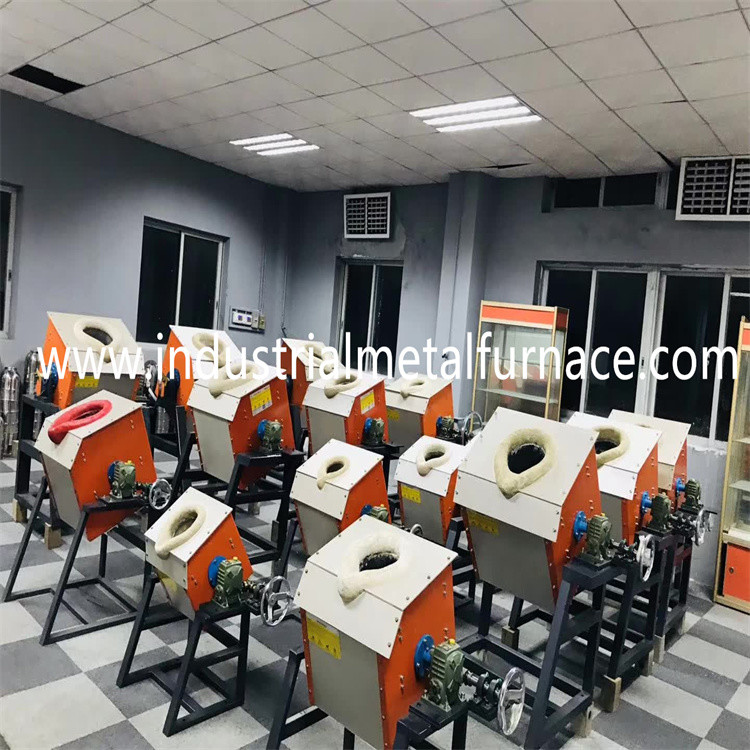

1.4 The tilting type induction melting furnace has a small and compact structure. It is very easy in
installation and operation.
1.5 The industrial metal melting furnace has a fast melting speed and saves energy consumption.
1.6 We have full range induction melting furnaces and induction heat treatment furnaces. The
frequency can be low frequency, medium frequency or high frequency.
2. Technical Parameters of Industrial Metal Melting Furnace
| Furnace name | Industrial metal melting furnace |
| Furnace type | Medium frequency induction |
| Input voltage range | 70V-550V |
| Output oscillation frequency | 1-20KHZ |
| Cooling type | Water cooling |
| Water pump | 1 set supplied |
| Material to be melted | Silver |
| Capacity of industrial metal melting furnace | 10-250kg |
3.Power Table for silver industrial metal melting furnace
| Input power | Melting capacity of Silver | Overall Dimension (mm, L,W,H) |
|
15KW
|
10KG |
Furnace body:800*550*750mm Power cabinet:530*290*520mm Capacitor cabinet :500*230*460mm |
|
25KW
|
20KG |
Furnace body:800*550*750mm power cabinet::530*290*520mm capacitor cabinet:500*230*460mm |
|
35KW
|
30KG |
Furnace body:830*560*920mm power cabinet:630*340*540mm capacitor cabinet:500*230*460mm |
|
45KW
|
50KG |
Furnace body:890*620*1020mm power cabinet:700*350*620mm capacitor cabinet:500*230*460mm |
|
70KW
|
100KG |
Furnace body:940*650*1100mm power cabinet:700*350*620mm capacitor cabinet:550*400*510mm |
|
90KW
|
120KG |
Furnace body:940*650*1100mm power cabinet:820*420*890mm capacitor cabinet:550*400*510mm |
|
110KW
|
150KG |
Furnace body:1050*790*1200mm power cabinet:820*420*890mm capacitor cabinet:550*400*510mm |
|
160KW
|
250KG |
Furnace body:1050*790*1200mm power cabinet:750*500*960mm capacitor cabinet:550*400*510mm |
Notes: We also have medium and large size induction metal melting furnace. The max capacity of the furnace reaches 20Ton or more. We provide customzied service.
4.Supply Scope
The industrial metal melting furnace is comprised of 1 pc of heating power cabinet, 1 pc of capacitor abinet, 1pc of industrial metal melting furnace body, 1 pc of foot switch, 2 pcs of connection wires, 2 pcs of flexible connection cables, 1 pc of protective cap, and 1 pair of protection gloves.
