1. Company profile
Wuxi Wondery is a professional supplier of industrial furnaces. Our main products are:
aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace,
rotary melting furnace, reverberatory melting furnace and the related product.
Our company is established in 2008, the company has gained rich experience in development and
design,quality control and after-sales service. We have exported furnaces to the following countries and areas:
Vietnam, Thailand, Egypt, Pakistan, Bolivia, Mexico, USA, Kenya, Ethiopia, Tanzania, etc.
We are able to providing thoughtful solutions for every individual customer based on their specific requirements,
making sure that every potential customer is satisfied with ou work.
2. Technical Parameters
| Model | Crucible Capacity (kg) | Melting Capacity (kg/h) |
Overall Dimension (mm) L * W* H |
| WDL-RGQX-400 | 350 | 175 | 1400*1500*1650 |
| WDL-RGQX-500 | 500 | 250 | 1500*1600*1750 |
| WDL-RGQX-800 | 800 | 400 | 1600*1600*1750 |
| WDL-RGQX-1000 | 1000 | 500 | 1670*1700*1800 |

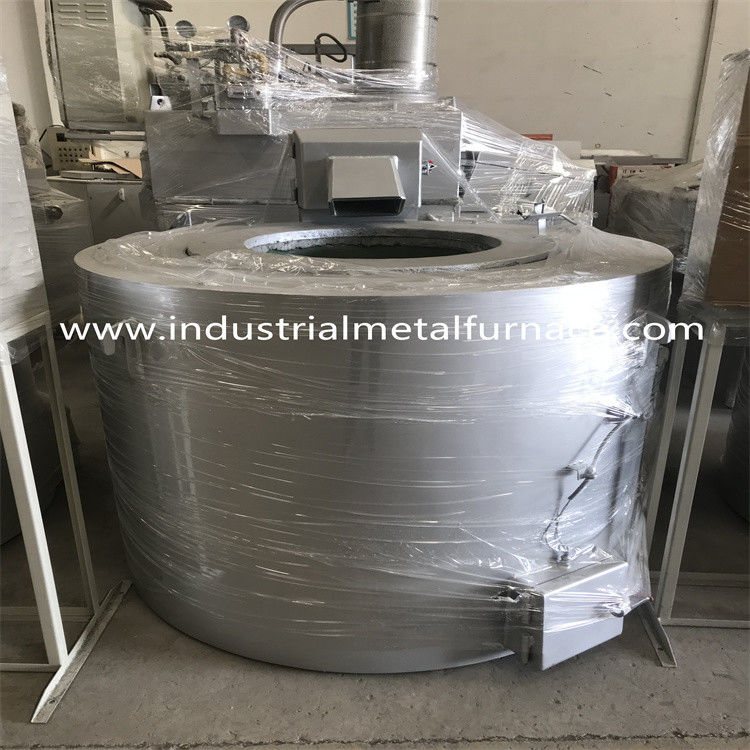

3. What is a zamak melting furnace?
The zamak melting furnace is a furnace to melt zinc allloy.
And the zamak melting furnace is divided into electric induction type, gas type, or oil
type based on the energy medium. And based on structure, it is divided into non tilting
type copper melting furnace, and tilting type copper melting furnace. The copper melting
furnace is suitable for recycling industry or casting industry. The crucible type zamak
melting furnace is comprised of metal melting furnace body, graphite crucible,

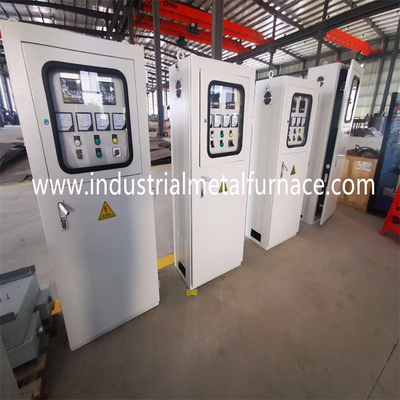

control cabinet, and burning system.
