1.Introduction
1.1 The crucible type copper melting furnace made by the company is
mainly used for pressure casting, gravity casting, and melting and
holding before liquid die forging.
1.2 The combustion system adopts the pipe burning system which
has the advantages of automatic ignition, automatic temperature control
and complete combustion.
1.3 Furnace bottom is built with special refractory material which
prevents major damage in case copper furnace liquid leaks.
1.4 The side wall of the furnace is lined with superlight refractory
insulation material, which can effectively prevent the expansion and
heat diffusion caused by heating.

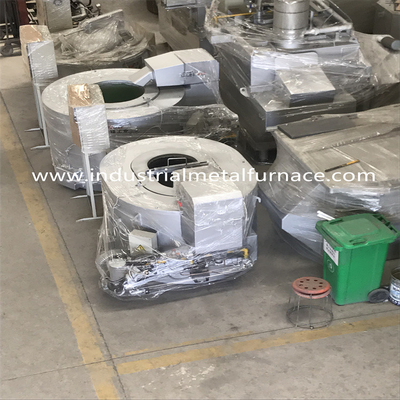

1.5 The gas fired crucible copper melting furnace body is scientifically
designed with low wall surface temperature and energy-savingness.
2. Technical parameters
| Model Table | Crucible Specification |
Maximum Melting Rate (kg/h) |
||
|
Inner diameter (mm) |
Height (mm) |
Capacity (kg) |
||
| WDL-RCUQ-300 | 455 | 500 | 300 | 200 |
| WDL-RCUQ-500 | 455 | 600 | 500 | 350 |
| WDL-RCUQ-800 | 615 | 700 | 800 | 600 |
| WDL-RCUQ-1000 | 620 | 800 | 1000 | 700 |
