Tilting IGBT Power Medium Frequency Industrial Metal Melting Furnace 70KW Copper Scraps
1. Application
The IGBT power 70kw medium frequecy industrial copper melting furnace is used to melt
100KG copper scraps.

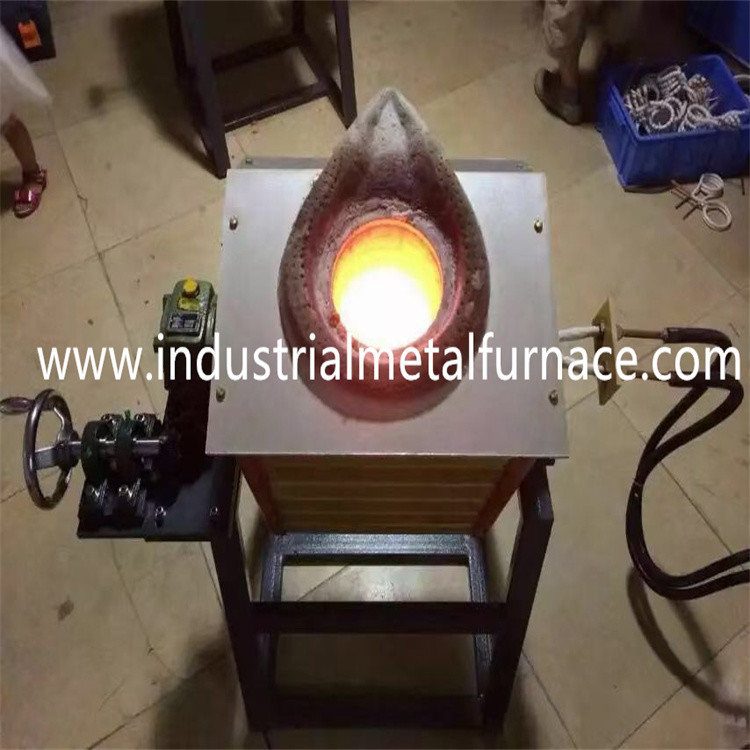

The induction melting furnace is a fast tilting type induction furnace for melting various metals
such as steel, iron, copper, silver, aluminum, zinc, lead, etc. The metal melting furnace has the
advantages of small size required, safety, intelligent temperature control, and fast melting efficiency.
2. Technical Parameters
| Output power | 70KW | Capacity | 100KG Copper |
| Input voltage range | 340V-430V | Cooling type | Water cooling |
| Output oscillation frequency | 1-20KHZ | Cooling water requirement |
0.8~0.16Mpa 9L/min |
| Max input current | 105A | Weight |
Main machine: 80kg; Control cabinet: 60kg |
| Output current | 400-3500A | Dimension |
Main machine: 725*600*900mm(L*W*H); Control cabinet: 670*420*500mm (L*W*H) |
3.Power Table for Small Size Copper Metal Melting Furnace
| Specifications and parameters of medium frequency smelting furnace series | ||||
| Input power | Melting capacity of common materials | Graphite crucible size (mm) |
Furnace body size (length/width/height (mm) |
Power supply size(mm) |
|
15KW
|
10KG | Outer diameter / total height: 160 * 185 | 800*550*750 |
Cabinet 1:530*290*520 Cabinet 2 :500*230*460 |
|
25KW
|
20KG | Outer diameter / total height: 185* 220 | 800*550*750 |
Cabinet 1::530*290*520 Cabinet 2:500*230*460 |
|
35KW
|
30KG | Outer diameter / total height: 215* 250 |
830*560*920
|
Cabinet 1:630*340*540 Cabinet 2:500*230*460 |
|
45KW
|
50KG | Outer diameter / total height: 260 * 300 |
890*620*1020
|
Cabinet 1:700*350*620 Cabinet 2:500*230*460 |
|
70KW
|
100KG | Outer diameter / total height: 315 * 410 |
940*650*1100
|
Cabinet 1:700*350*620 Cabinet 2:550*400*510 |
|
90KW
|
120KG | Outer diameter / total height: 340 * 440 |
940*650*1100
|
Cabinet 1:820*420*890 Cabinet 2:550*400*510 |
|
110KW
|
150KG | Outer diameter / total height: 365 * 450 |
1050*790*1200
|
Cabinet 1:820*420*890 Cabinet 2:550*400*510 |
|
160KW
|
250KG | Outer diameter / total height: 430* 540 |
1050*790*1200
|
Cabinet 1:750*500*960 Cabinet 2:550*400*510 |
Notes: We also have medium and large size induction metal melting furnace. The max capacity of
the furnace reaches 20Ton or more. We provide customzied service.

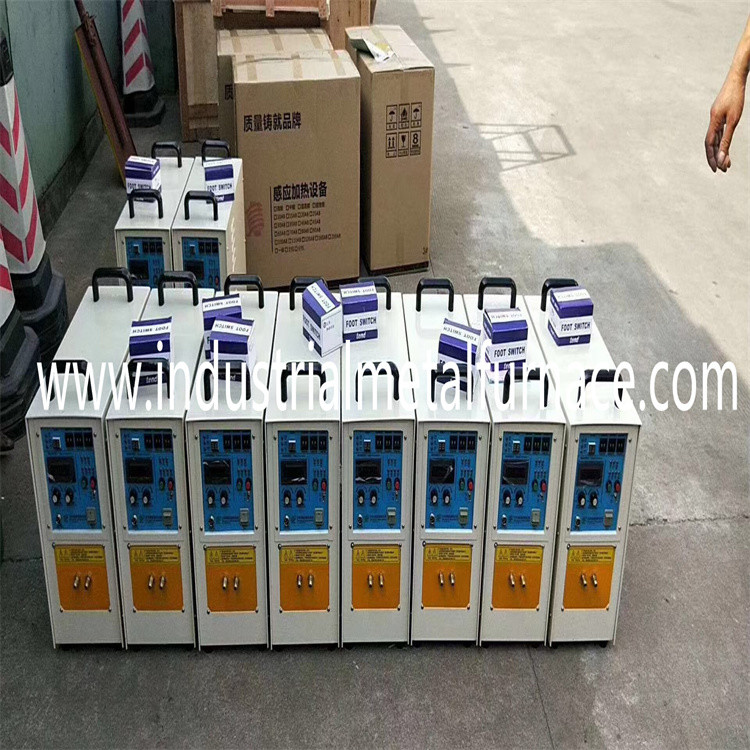

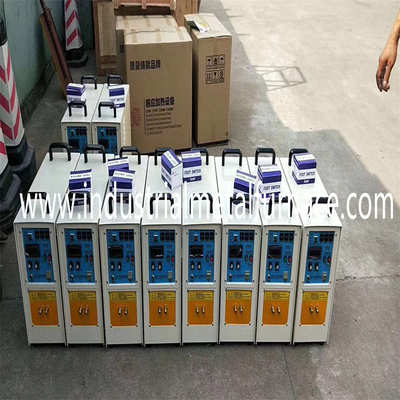

4.IGBT Power Supply
The metal induction furnace adopts IGBT power device and unique frequency conversion technology
to operate stably and provide higher reliability and durability. It has the function of constant current and
constant power control, which greatly optimizes the metal heating process, realizes efficient and fast heating,
and gives full play to the advantages of the product. Under the same conditions, it has twice the power saving
than the traditional SCR medium frequency. With 100% load design, it can work continuously for 24 hours and
improve heating quality.
