1400 Degree Industrial Metal Melting Furnace Copper Scraps Tilting Type Crucible Furnace

1400 Degree Industrial Metal Melting Furnace Copper Scraps Tilting Type Crucible Furnace

Brand Name:	WONDERY
Model Number:	WDL-RCUQ-1000
MOQ:	1SET
Price:	TO BE NEGOTIATED
Delivery Time:	3-5 WORKING DAYS
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name of equipment:

Industrial Metal Melting Furnaces

Capacity:

1000kg Copper Scraps

Fuel:

Natural Gas

Raw Material:

Copper Scraps

Max temperature:

1400 Degree Celcius (atmosphere)

Melting Rate:

500kg/h

Packaging Details:

PALLET

Supply Ability:

1000 SETS PER MONTH

Highlight:

500kg/h Industrial Metal Melting Furnace wondery

1400 degree Industrial Metal Melting Furnace wondery

Copper Scraps tilting type crucible furnace

Product Description

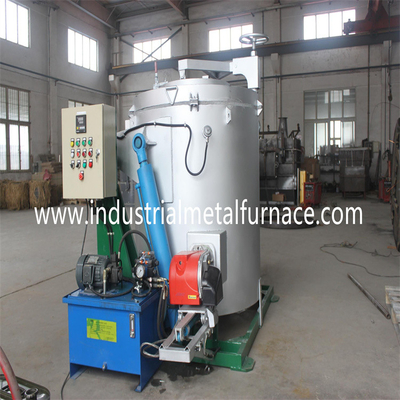

Gas Fired Tilting Crucible Industrial Metal Melting Furnaces for Copper Scraps

1.melting furnace introduction

The gas fired industrial metal melting furnace is used to melt copper with a max temperature of

1400 degree celcius (atmosphere temperature) with natural gas as fuel. In comparison with the

normal induction melting furnace, the gas fired industrial copper metal melting furnace with graphite

crucible is more easy in operation, and more cost saving. The copper melting furnace doesn’t require

cooling system, and is very easy in installation and operation.

2.Technical Parameters

Item	Parameters
model	WDL-RCUQ-1000
Furnace type	Copper industrial metal melting furnace
crucible capacity	1000KG
melting rate	about 500Kg/Hr (at continuous working status)
Fuel	natural gas 8400Kcal/M3
rated working temperature	1250℃ (atmosphere)
temperature uniformity	±15℃
gas consumption	about 45-50m3/ton copper for gas
loss rate	about 1%
Gas burner brand	Riello, Italy
Tilting mechanism	Hydraulic type

3. Supply scope

Crucible industrial metal melting furnace body, 1 set;

Control box, 1 set;

Gas burner, 1 set;

Thermal coupling, 2 pieces (1 piece for standby);

Graphite crucible, 1 piece for melting copper;

Hydraulic system, 1 set;

Heat preservation material bundle, 1 set;

4.Features

4.1 The crucible copper industrial metal melting furnace shell is fabricated from steel plates and

sectional steel.

4.2 The refractory lining of the industrial metal melting furnace is made of once-forming castable.

The castable material is high temperature type supplied by Allied Mineral Products (Tianjin) Co., Ltd.

The heat preservation layer is comprised of porcelain fiber board, and light mullite heat preservation bricks.

Advantages of lining: good heat preservation purpose, low energy consumption, and long service life.
