1000KG Gas Fired Tilting Industrial Metal Melting Furnaces for Aluminum Scraps
1. What is a gas fired metal melting furnace?
The industrial metal melting furnace is applicable to melting of ferrous metal and alloy
of low melting point. The rated temperature of the furnace is 850℃. The crucible melting
furnace uses a refractory crucible which contains the metal charge. The charge is heated
via gas heating via conduction of heat through the walls of the crucible. The gas fired
metal melting furnace works with natural gas, LPG gas, methanol, propane, etc.
The burner used is of quality brands such as Baltur, Riello,etc.
2.Technical Parameters
| Item | Parameter |
| Crucible capacity | 1000kg |
| Furnace type | Industrial metal melting furnace |
| Crucible material | Graphite crucible |
| melting rate | about 500Kg/Hr ( at continuous working status) |
| fuel gas | natural gas with heat value at 8400Kcal/M3 |
| fuel gas consumption | about 80M3/ton aluminum |
| rated working temperature | 850℃ |
| furnace body outer wall temperature | less than room temperature +50 degree Celsius. |
| rated working condition: |
a) The melting furnace and other facilities are working at a normal condition; b) The heat value of the fuel gas meets 8400Kcal/ Nm3; c) The furnace is working in a continuous manner. d) The fuel gas consumption is calculated based on 3 hours of continuous working. |
| Lead time | 45 days |
3.Our Company Introduction
WONDERY is a professional company focusing on design and manufacture of industrial metal
melting furnaces, holding furnaces, heat treatment furnaces, mesh belt furnaces, hot dip zinc
galvanizing furnaces, transfer ladles, and providing post-sales service.
Our company has gained rich experiences in industrial metal melting furnaces project cases
since its foundation,formed a mature equipment process, and boasted a number of experienced
and skilled team. The company has built up its reputation as a reliable maker of industrial metal
melting furnaces in the non-ferrous and ferrous metal casting industry, and focused on user economy
and environmental protection. We are committed to providing the industrial metal crucible melting furnaces
with a clean work environment, low production cost, high quality of finished product, safety, reliability
and easy maintenance.The company has also been exporting its products to western countries from
Europe, Southeast Asia and others.
4.Supply Scope of Industrial Metal Melting Furnaces
|
Metal melting furnace body, 1 set; Control box, 1 set; Natural gas burner, 1 set; Automatic temperature controller, 1 set; Thermal coupling, 2 pieces; (1 piece for standby) Graphite crucible, 1 piece, Vesuvius or Baidun brand; Graphite crucible fire blocking ring, 1 piece; Hydraulic tilting system, 1 set; Manual, 1 copy. |

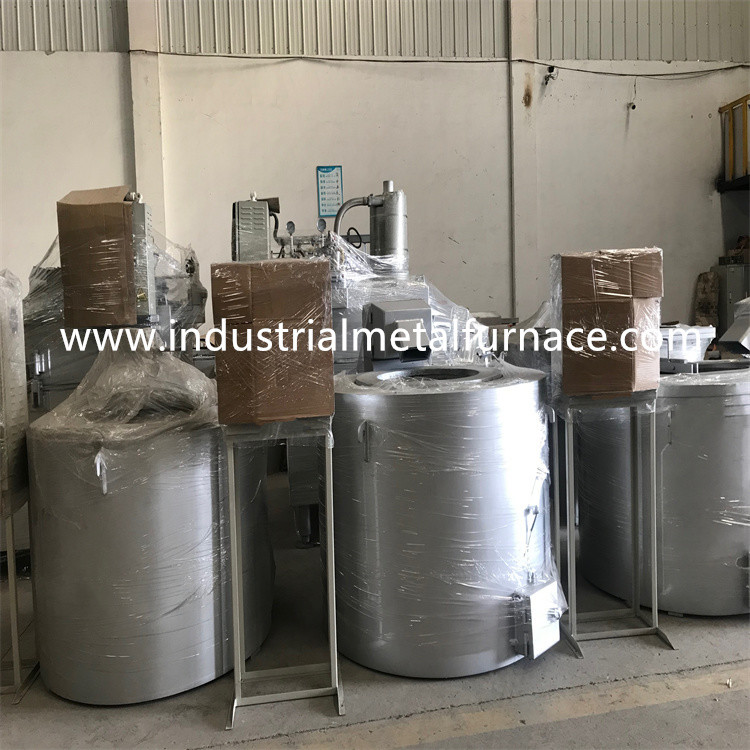

Indusdtrial Metal Melting Furnace
