Pouring 540mm Aluminum Melting Foundry Molten Aluminum Transfer Ladles

Name: Pouring 540mm Aluminum Melting Foundry Molten Aluminum Transfer Ladles
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: WDL-YB-100
Availability: InStock

Brand Name:	WONDERY
Model Number:	WDL-YB-100
MOQ:	1SET
Price:	TO BE NEGOTIATED
Delivery Time:	3-5 WORKING DAYS
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name of equipment:

Transfer Ladle

Furnace type:

Crucible Type

Capacity:

100-800kg/AL

Ladle Lining:

High Strength Castable

Diameter:

540

Height:

540

Overall Size:

1200*720*1385

Model:

WDL-YB-100

Packaging Details:

PALLET

Supply Ability:

1000 SETS PER MONTH

Highlight:

800kg/AL aluminum melting foundry wondery

540mm aluminum melting foundry wondery

1200mm Molten Aluminum Transfer Ladles

Product Description

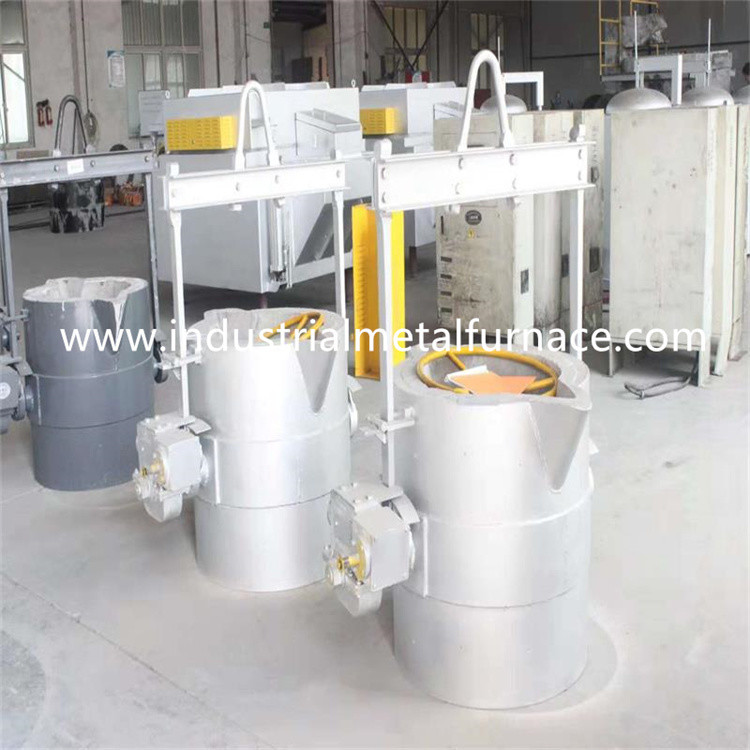

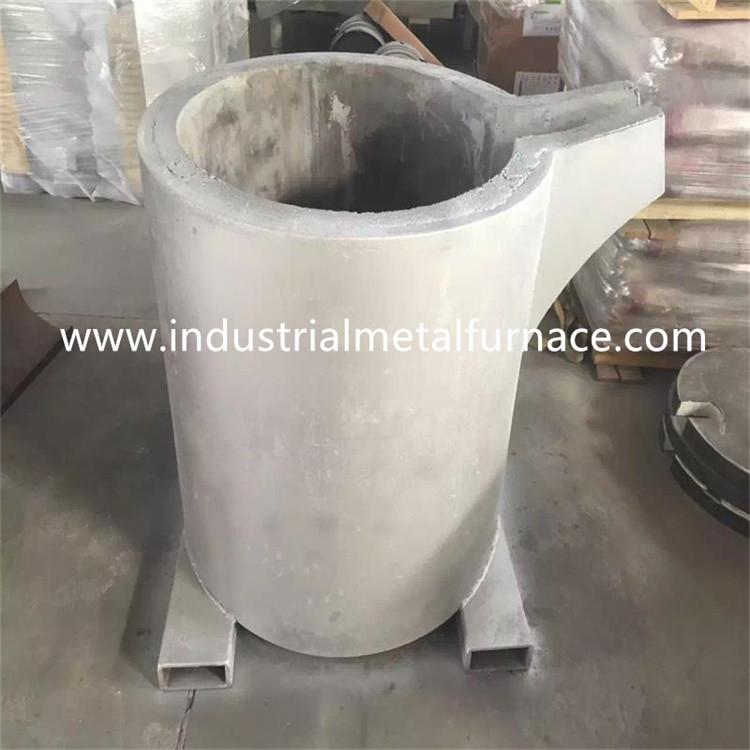

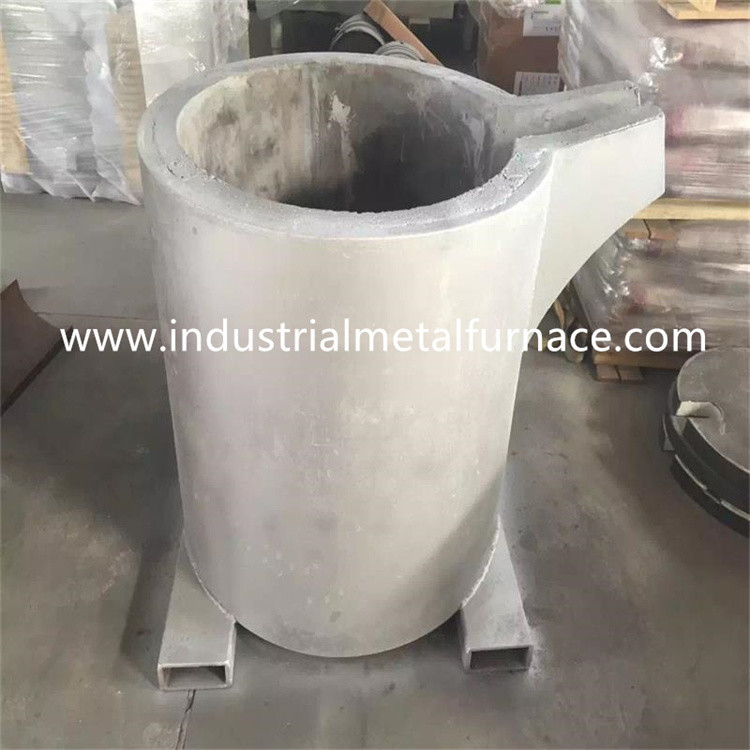

Industrial Pouring Foundry Furnace Transfer Ladle for Die Casting Operation

1. Application

The pouring foundry furnace transfer ladle is used to transfer the molten metal liquid.

The pouring foundry furnace transfer ladle has both the crane lifting type and the forklift type.

Lining material is of either non metal-stiking casting material or crucible type. We also supply

the bigger capacity transfer ladles based on the customer’s request.

2. Technical Parameters

Model	Capacity (kg/Al)	Ladle Mouth Diameter (mm)	Ladle Height (mm)	Overall Size (mm)
WDL-YB-100	100	540	540	12007201385
WDL-YB-150	150	590	620	12608151400
WDL-YB-300	300	750	730	142510201700
WDL-YB-500	500	900	880	153211451836
WDL-YB-800	800	1070	1100	163213551886

3. Difference of transfer ladles and crucibles

The transfer ladles are used in the aluminum and foundry industries to transfer the hot molten

But the crucibles are usually not movable.metal from one location to another.

And in most cases, the transfer ladle is used to transfer the hot molten liquid from the melting furnace

to the holding furnace. Crucibles are containers that work inside the furnace body and keep the molten

metal liquid.We have aluminum melting furnaces, aluminum holding furnaces, rotary degassing machine,

and transfer ladles for die casting factories.
