Home /Products/Heat Treatment Furnace/Customized 3.5 *1.5 * 1.2 Electrical Resistance T4 Aging Heat Treatment Furnace for Aluminum Parts

Customized 3.5 *1.5 * 1.2 Electrical Resistance T4 Aging Heat Treatment Furnace for Aluminum Parts

1 Set/Sets
MOQ
TO BE ENGOTIATED
Price
Customized 3.5 *1.5 * 1.2 Electrical Resistance T4 Aging Heat Treatment Furnace for Aluminum Parts
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Heating Power: 200kw
Rated Temperature: Max 650℃ Working Temperature: 500℃
Power Supply: 380V, 3-phase, 50Hz
Effective Working Size Of Furnace Muffle Tank: 3500×1500×1200mm (L*W*H)
Name: Aging Heat Treatment
Basic Infomation
Place of Origin: Jiangsu,China(Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: RT2-200-6
Payment & Shipping Terms
Packaging Details: wooden case suitable for sea transportataion or nude package
Delivery Time: 60 working days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Year
Product Description

Customized 3.5 *1.5 * 1.2 Electrical Resistance T4 Aging Heat Treatment Furnace for Aluminum Parts

  1. Application

The bogie hearth furnace is mainly used for various steel structural components, annealing and other heat treatment processing.



  1. Main Technical Parameters
No. Item Technical Parameters
1 Rated power 200Kw+5% (1-100%) adjustable
2 Power supply 380V, 3-phase, 50Hz
3 Rated temperature 650℃
4 Heating rate of empty furnace ≤1.2h
5 Heating element connection method YY
6 Temperature uniformity ±5℃
7 Instrument temperature control accuracy ±1℃
8 Effective working size 3500×1500×1200mm (L*W*H)
9 Control zone 2 zones and 2 additional temperature measurement point
10 Empty furnace loss power ≤10%
11 Temperature control SCR, PID regulator, SHIMADEN electric temperature controller, equipped with communication 15 inch touch screen control, with settings and storage of process curves and historical data saving, querying, and downloading.
12 Temperature rise on the outer wall of the furnace side ＜40℃
13 Heating element material 0Cr25AL5 (strip)
14 Material of furnace bottom plate

ZG30Cr18Mn12Si2 heat-resistant steel

total thickness: 30mm
15 Loading method The workpiece is lifted onto the surface of the bogie, and the bogie is driven in for heating
16 Electric Heat Treatment Furnace lining form Adopting standard fire-resistant fiber structure
17 Opening and closing form of furnace door 1 set of 1-ton electric hoists, up and down, with self weight compression and sealing
18 Form of bogie entry and exit 1 set of 4KW cycloidal pinwheel reducer to drive the wheels in and out
19 Circulation fan 2 sets of 7.5KW circulating fan, cooling method adopts water cooling.
20 Guide plate 2mm 304 stainless steel



3. Structural Introduction

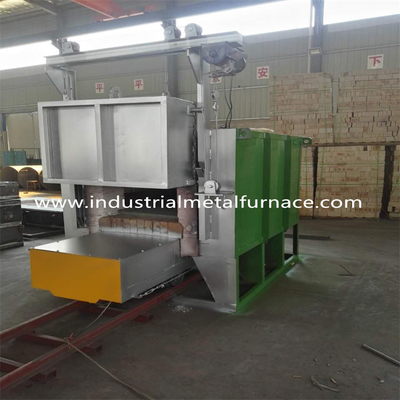

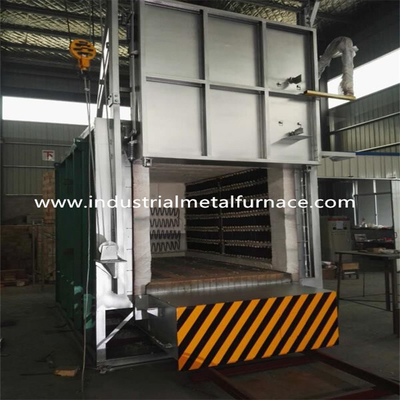

The bogie hearth treatment furnace mainly consists of a furnace shell, furnace lining, furnace door; load bearing bogie and

bogie traction mechanism, furnace body and workshop sealing mechanism; heating elements and fixing devices; furnace

temperature automatic control system, hot air circulation system, etc.


The hot air circulation system of this aging heat treatment furnace mainly consists of two centrifugal fans and a stainless

steel guide plate.

The heat emitted by the heating element is evenly blown into the effective working area by the circulating fan through the

air guide plate. The material of the fan and shaft is Cr20Ni20, and in order to ensure the normal use of the bearings, the

cooling method is air cooling.
