90KW 2 Chamber Industrial Gravity Casting Metal Melting Induction Furnace For Copper

Industrial Gravity Casting Metal Melting Induction Furnace for Copper

1. Overview

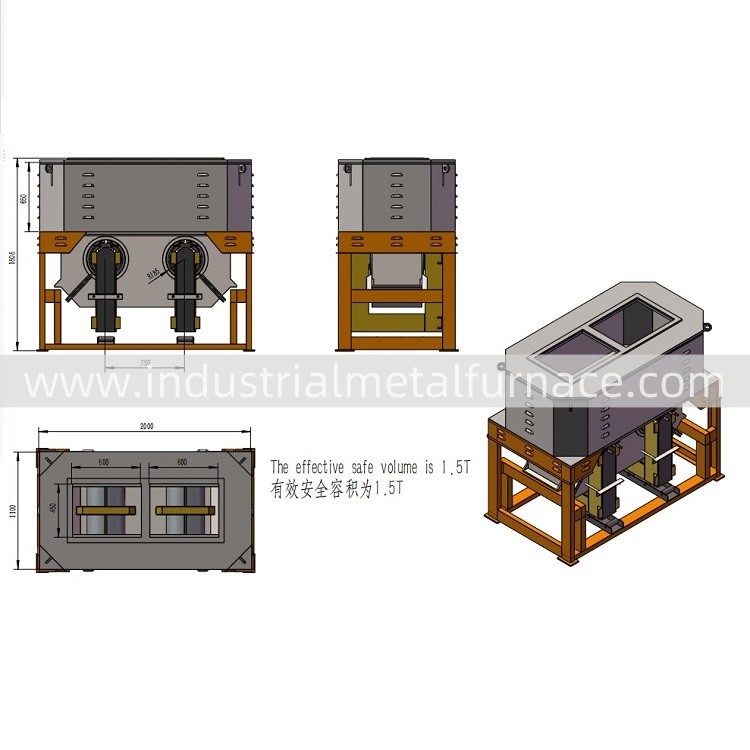

The 90KW gravity casting furnace adopts a double melting groove design and a double induction body structure.

The advantages of this structure are that it balances the temperature of the melting groove and each part of the furnace

to achieve energy saving effects, and increases the range of electromagnetic stirring to make the distribution of each

element in the furnace more uniform. The purpose of the gravity casting furnace: melting copper, bronze, brass and

other copper alloys for smelting and heat preservation.

2. Technical Parameters

90KW gravity casting copper melting furnace technical parameters

3. Working Principle and Main Structure

3.1 This product is designed using the principle of electromagnetic induction.

When an AC voltage is applied to the induction coil, an alternating magnetic flux is generated. The magnetic flux forms a

closed magnetic circuit through the iron core. This alternating magnetic flux induces an electromotive force and a secondary

current in the molten groove. This current passes through the resistance of the metal charge and converts electrical energy

into thermal energy, which melts the metal in the molten groove.

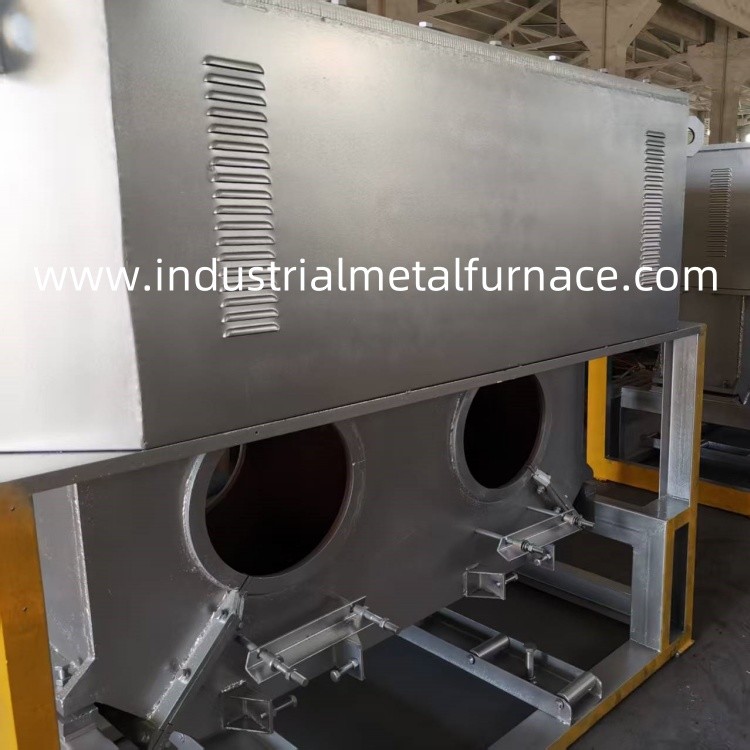

3.2 This product consists of a furnace body, a furnace frame, an induction body, an electric furnace cooling system, an electrical

control cabinet, etc.

Electric furnace voltage range: 90V, 120V, 150V, 180V, 210V, 250V, 300V, 380V.

3.3 The gravity pouring electric copper melting furnace adopts a vertical "mouth" iron core induction structure. The shell is made of

rolled and welded steel plates, and the molten pool is made of refractory bricks after the insulation material and refractory material

are tied together.

3.4 The induction body consists of two inductors, two iron cores, and two melting grooves. The induction body shell is composed

of refractory knotted material and water cooling jacket. The inductor is water-cooled: in order to facilitate the removal of refractory

materials and reduce the power loss of the induction body shell, the induction shell is composed of two halves, with insulating

material in the middle. The induction body shell is based on the upper flange surface when assembled.

3.5 During the smelting process, the inlet water temperature is required to be no higher than 35℃, the outlet water temperature

is required to be higher than 55℃, and the water flow rate should be measured frequently. If the water flow rate is lower than

the required level, the scale should be cleaned.

3.6 This industrial metal melting furnace requires that the cooling water quality should meet the following requirements: pH value

is within the range of 7~8, hardness is not greater than 7, and the total content of suspended matter and dissolved solids does not

exceed 10, so as to avoid scaling of cooling water and blockage of water channels.
