200kg Cast Iron Melting Industrial Induction Furnace
1.Introduction of Furnace
The melting industrial induction furnace mainly composed of power
control cabinet and induction melting furnace body. The equipment
can meet 24 hours of continuous work,it have self-test function and
leaking alarm device, real-time detection of water temperature, water
pressure, over-current, over-voltage, lack phase information. The melting

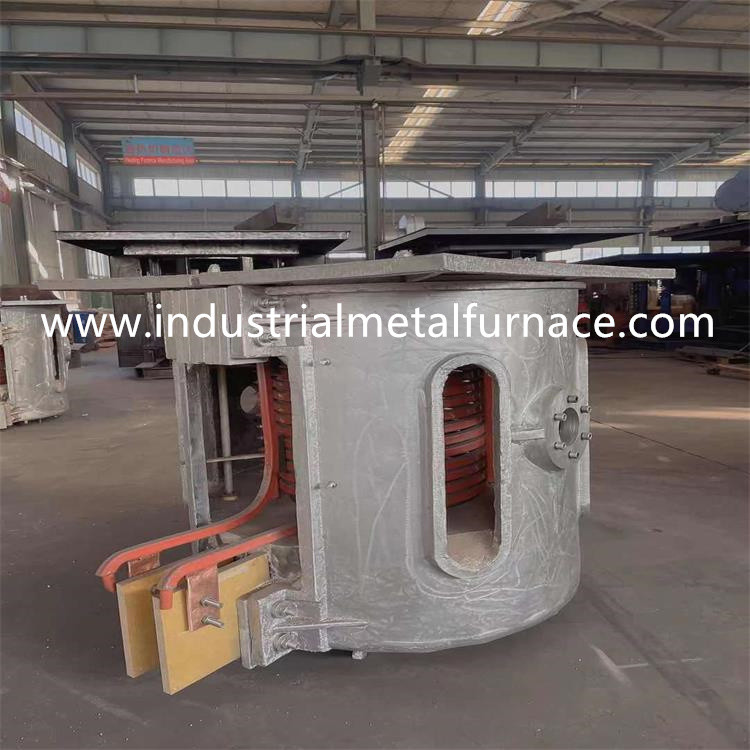

industrial induction furnace body is made by thick aluminum alloy shell

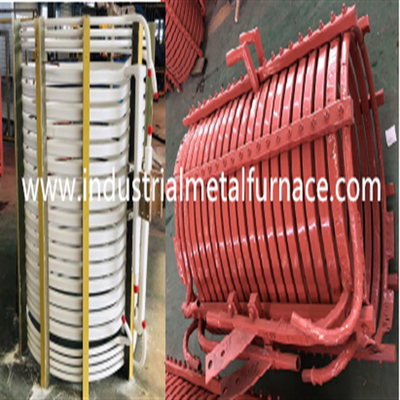

to reduce the magnetic leakage and ensure furnace body strength.The
thick T2 standard copper tube is taken use for induction coil.
2.Industrial induction furnace’s features
1. Various capacity 0.1T -20T, fast melting speed, 40-60 minutes /pot
2. Have self-test function, real-time supervise.
3. Have leaking alarm device, PLC control, easy to operate.
4.The control cabinet is standard of the automobile line, easy to maintain
5. The water way uses carbon-free hose , water separetors and clips use
304 stainless steel
6.Can meet 24 hours continuous work.
7. High efficiency , low cost , easy to maintain, energy saving ,safe and stability.
3.Technical Data
| Basic Parameters | |||||
| Capacity | Power | Voltage | Cabinet size (mm) | Cabinet weight | Furnace Body weight |
| 100KG | 100KW | 3*380V | 1000*800*1700 | 0.5T | 0.3T |
| 250KG | 250KW | 3*380V | 1300*850*2000 | 0.8T | 0.7T |
| 500KG | 400KW | 3*380V | 1300*850*2000 | 1T | 1T |
| 1T | 800KW | 3*660V | 1300*850*2000 | 1.2T | 1.3T |
| 1.5T | 1000KW | 3*660V | 1300*850*2000 | 1.2T | 1.8T |
| 2T | 1500KW | 3*660V | 2400*1000*2000 | 1.6T | 2T |
| 5T | 3000KW | 6*950V | 2400*1000*2000 | 2.5T | 4.5T |
| 10T | 6000KW | 6*1250V | 3500*1000*2200 | 3T | 23T |
| 15T | 10000KW | 6*1250V | 4000*1200*2200 | 3.5T | 32T |
