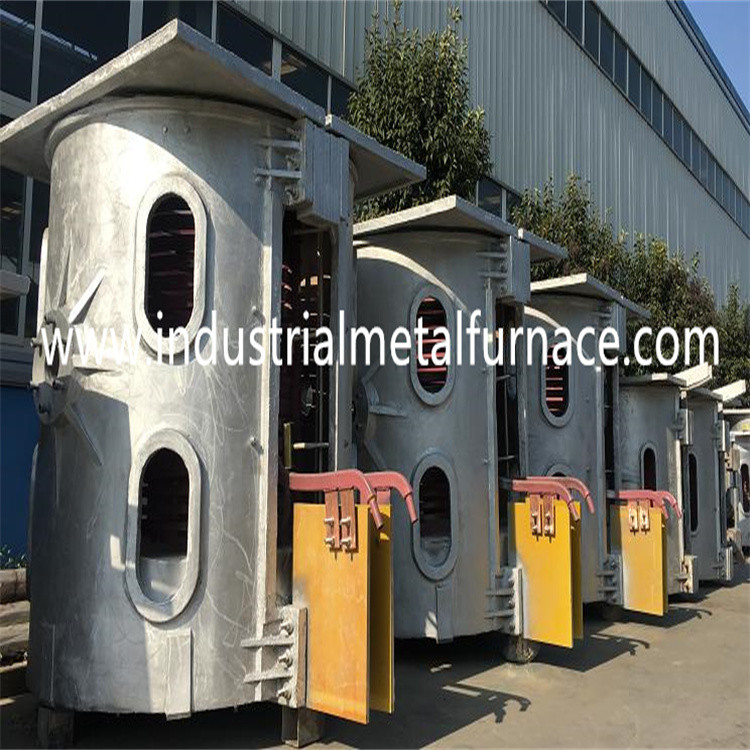

50HZ 1000kg Copper Scrap Melting Furnace Industrial KGPS Power Metal Melting Equipment

Brand Name:	WONDERY
Model Number:	WDL-CX-800KW
MOQ:	1SET
Price:	TO BE NEGOTIATED
Delivery Time:	3-5 WORKING DAYS
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name of equipment:

Copper Induction Melting Furnace

Rated Tapping Temperature:

1300℃

Max Capacity:

1.2T

Pressure Of Water:

0.1-0.12Mpa

Rated Capacity:

Power Supply:

380V 3P 50HZ

Rated Power:

800KW

Raise Of Water Temperatur:

10℃

Packaging Details:

PALLET

Supply Ability:

1000SETS PER MONTH

Highlight:

wondery 50HZ copper scrap melting furnace

wondery 1000kg copper scrap melting furnace

800KW KGPS Power metal melting equipment

Product Description

1000kg Copper Scraps Industrial Induction Melting Furnace Medium Frequency KGPS Power

1. Company Capability
The industrial induction melting furnace has excellent performance and

excellent durability. We will customize the right product according to

customers' requirements. No matter the size of your foundry or melting

workshop and the needs of the melting workshop, we can meet the above requirements.
We offer a wide range of small,medium and large capacity industrial inductoin

melting furnaces. In addition, we can offer the foundry a choice of small to

medium sized applications. Finally, we also match the heavy duty steel shell

melting industrial induction furnace for the largest foundry applications to

meet the precise requirements of our customers.

2. Technical Parameters

Item		Unit	Parameter	Remarks
Medium frequency induction melting furnace
Rated capacity		t	1	Copper
Max capacity		t	1.2	The maximum loading depends on the lining of the lining
Rated tapping temperature		℃	1300
Melting rate		t/h	0.1	Must meet the following conditions: the tapping temperature ≤ 1600 ℃; scrap collection rate ≥ 97%; hot, continuous, feeding speed is compact; insulation, except slag; light material packing briquettes, aniseed cutting; press the mechanical hand with the steel to the actual weighing as a benchmark
Melting time		minutes/time	55±5%
Power consumption		KWH/T	800±5%

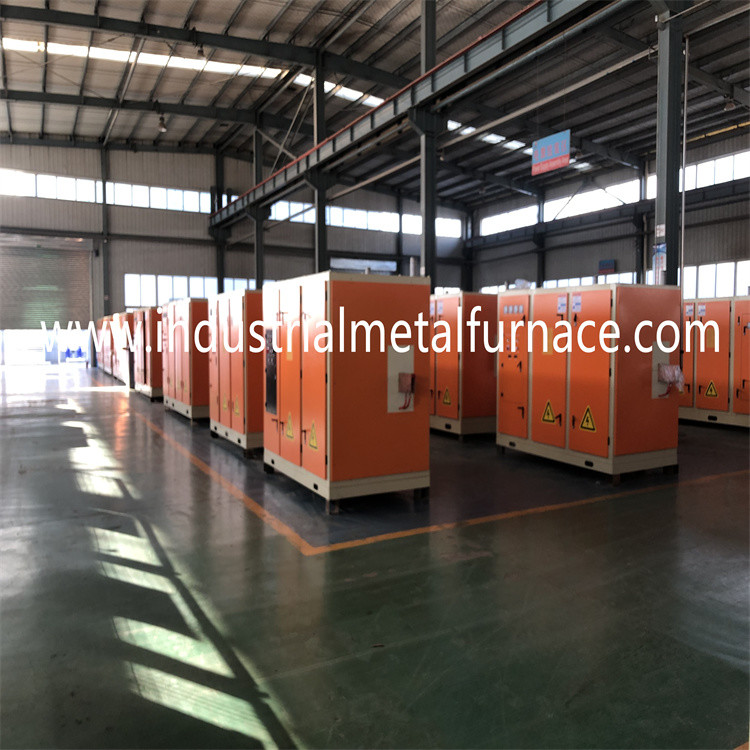

Power Cabinet
Rated power		KW	800	0-800 can be adjustable
Input Voltage		V	3N 380V	Mid-range
Cooling water of power	Pressure of water	Mpa	0.1-0.12	Note: closed water inlet pressure 0.12Mpa, return water pressure 0.06Mpa;
	Inlet water temperature	℃	5~35
	Outlet water temperature	℃	≤45
	Flow (power)	t/h	4
	Raise of water temperature	℃	10
