300 To 1000 Kg Aluminum Oval Crucible Gas Fired Melting Furnace For Die Casting Process

300 To 1000 Kg Aluminum Oval Crucible Gas Fired Melting Furnace For Die Casting Process

Brand Name:	WONDERY
Model Number:	WDL-RG-300 500 800 1000
MOQ:	1SET
Price:	TO BE NEGOTIATED
Delivery Time:	35 WORKING DAYS
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name of equipment:

Furnace For Melting Aluminum

Melting Capacity:

300 - 1000kg

Crucible Brand:

Baidun, China

Fuel Type:

LPG, Natural Gas

Temperature Control Accuracy:

± 5 ℃

Crucible Shape:

Oval

Packaging Details:

PLYWOOD CASE PACKAGE

Supply Ability:

1000 SETS PER YEAR

Highlight:

300kg gas fired melting furnace

Die Casting gas fired melting furnace

1000kg gas fired aluminium melting furnace

Product Description

300 to 1000 kg aluminum oval crucible gas fired melting furnace for die casting process

1. Application

The gas crucible melting furnace is mainly used for aluminum melting for the pressure

casting, gravity casting and the liquid die forging. Compared with the round shape crucible,

this oval crucible has more operation area and is more convenient for ladling out the aluminum

liquid for the follow-up die casting process.

2 Features

2.1 The crucible melting furnace lining is of the once forming casting material, which has a good

heat preservation effect and a fast temperature rising speed. The wall temperature rise is ≤ 40℃.

2.2 The furnace adopts Baidun brand graphite crucible, which has a good thermal conductivity, a

long life, and no iron hyperplasia.

2.3 The metal melting furnace is equipped with the recuperator which could preheat the combustion

supporting air and saves the gas energy consumption.

3. Technical Parameters

Model	Crucible capacity	Fuel	Power of burner	working pressure	Furnace rated temperature	Temperature Accuracy	Furnace wall temperature
RG-300	300Kg	NG, LPG	150KW	5KPa (500㎜H₂O)	850 ℃ (atmosphere)	± 5 ℃ (temperature of aluminum liquid at holding stage)	< RT+25 ℃
RG-500	500Kg	NG, LPG	230KW
RG-800	800Kg	NG, LPG	320KW
RG-1000	1000Kg	NG, LPG	320KW

This oval shape crucible melting furnace is specially recommended for die casting process. The furnace is equipped

with the recuperator which greatly saves the energy consumption.

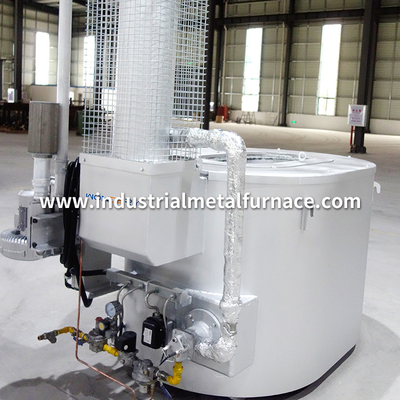

300 To 1000 Kg Aluminum Oval Crucible Gas Fired Melting Furnace For Die Casting Process 0
