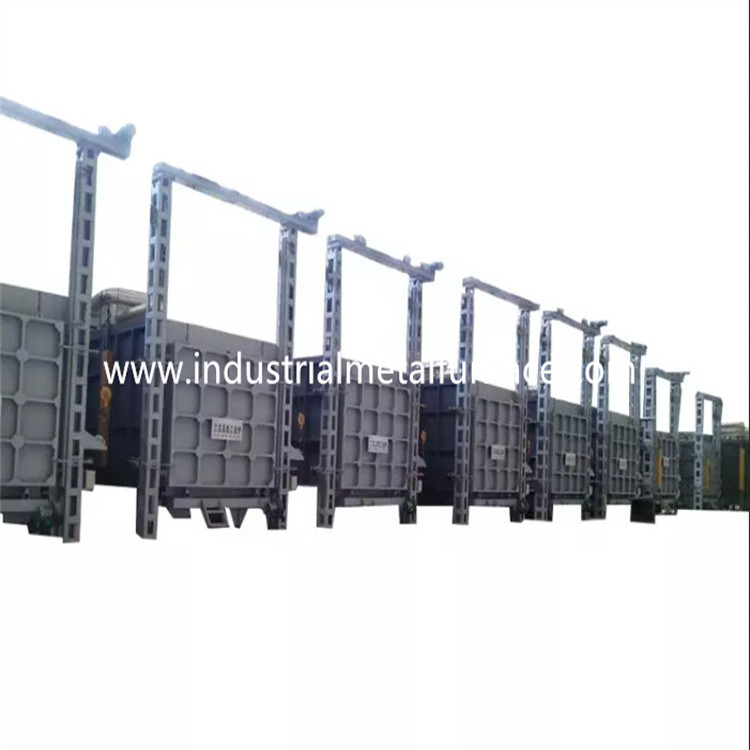

950 Degree Celcius Industrial Electric Bogie
Hearth Furnace for Steel Parts, Shafts, Rods and Tools
1. Application
The RT3-450-9 electric heat treat furnace is mainly used for
heat treatment of steel parts, steel castings, shafts and rods,
tool steel parts.
2. Main Technical Parameters
| No. | Item | Technical Parameters |
| 1 | Rated power | 450Kw+5% (1-100%) adjustable |
| 2 | Power supply | 380V, 3P, 50Hz |
| 3 | Rated temperature |
950℃ |
| 4 | Control zone | 3 zones |
| 5 | Effective working size | 4500×2400×2400mm(L×W×H) |
| 6 | Heating element connection | Ｙ |
| 7 | Temperature uniformity | ≤±10℃ |
| 8 | Temperature measurement accuracy | ±2℃ |
| 9 | Empty furnace power consumption | ≤18% |
| 10 | Temperature control method | SCR, PID regulator; Guolong temperature controller with overtemperature alarm; |
| 11 | furnace surface temperature rise | ＜45℃+ room temperature |
| 12 | Heating element | 0Cr25AL5 (strip) |
| 13 | Loading method | Product loaded on the bogie, and then bogie moves into the furnace |
| 14 | Furnace door opening method | Electric hoist up-down, sealed by spring |
| 15 | Bogie moving method | By the reducer |
| 16 | Bogie driving power | 5.5KW cycloidal pin gear speed reducer |
| 17 | Furnace lining | Refractory fiber |
3.Structural Introduction
The electric heat treatment furnace is mainly comprised of furnace body,
lining, furnace door and door compression system, bogie, heating
element, and temperature control system.
furnace body:
The electric resistance car bottom furnace body steel structure is
made from 10-12# sectional steel and ≥3mm steel plates. The side pillar
and back pillars are made from sectional steel, and are reinforced with
sectional steel bracings. The external wall of the furnace is painted with
2 layers of primers, and 2 layers of coating paint. The key part of the furnace
for heat treatment of metals is painted with heat resistant paint.
