25KW 5KG Industrial Metal Steel Melting Furnace Medium Frequency
1.Introduction

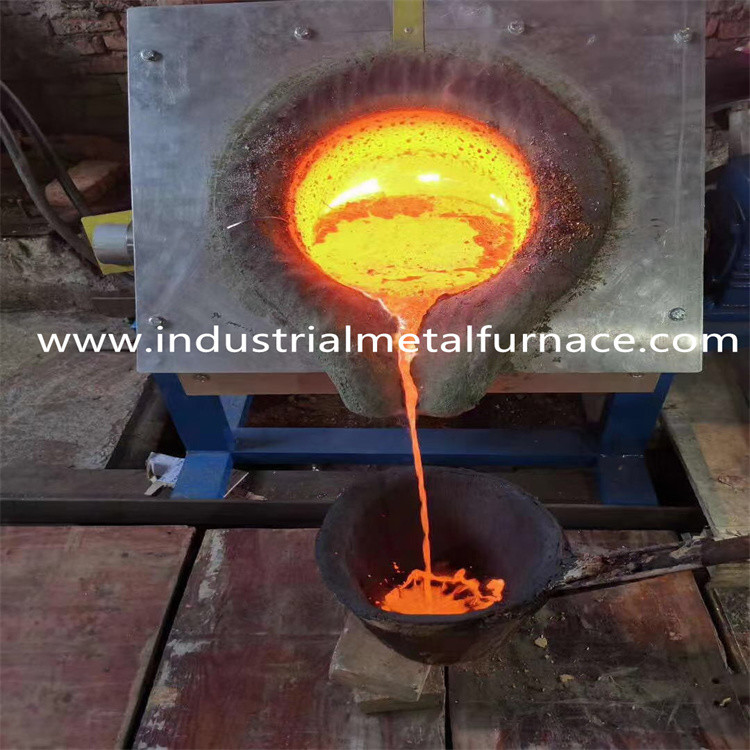

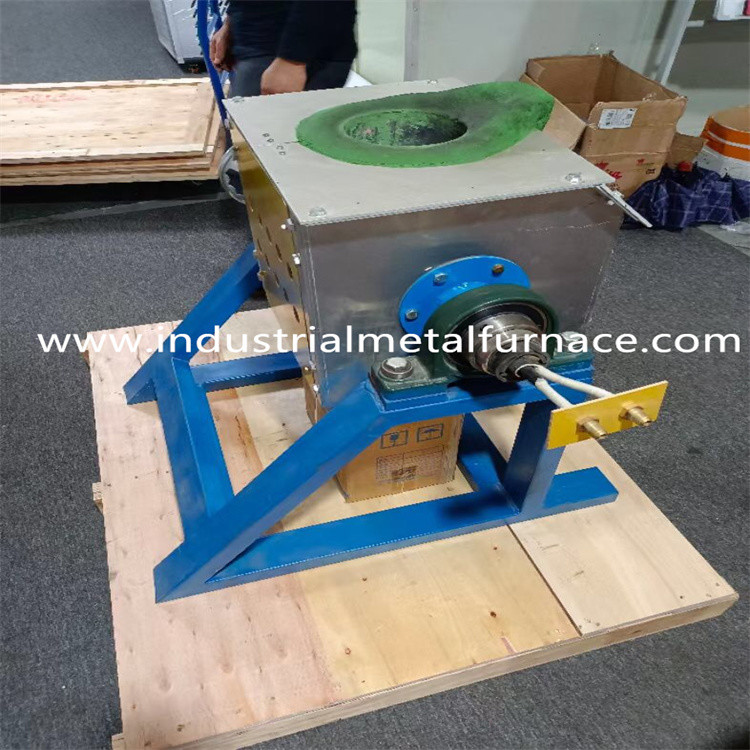

The tilting type industrial metal steel melting furnace is tilting type.
This type industrial metal steel melting furnace has a small size, a light
weight and is very convenient in use.
The tilting method can be mechanical tilting, hydraulic tilting, or
electrical tilting type. According to the customer’s requirement, the infrared
thermometer and the temperature controller can be added additionally.
2.Features
2.1 The tilting type induction steel melting furnace has a small and compact
structure. It is very easy in installation and operation.
2.2 The industrial metal induction steel melting furnace has a fast melting speed
and saves energy consumption.
2.3 We have full range industrial metal steel melting furnaces and induction
heat treatment furnaces. The frequency can be low frequency, medium frequency or high frequency.
2.4 The induction industrial metal steel melting furnace adopts IGBT power device
and unique frequency conversion technology to operate stably and provide higher reliability and durability.
3.Technical Parameters of 25KW Industrial Metal Steel Melting Furnace
| Model/specification |
WDL-MF-25KW |
| Working power supply |
3P 380V 50 / 60Hz |
| Operating voltage range |
340-430V |
| output power |
25KW |
| oscillation frequency |
1-20KHZ |
| Output current |
1-50A |
| Cooling water volume |
0.08-0.16Mpa 9L/min |
| Water temperature protection point |
40℃ |
| Power cabinet/ capacitor cabinet weight |
37.5/32.5kg |
| Overall dimension(mm) |
Power cabinet: 550 * 280 * 540mm
Capacitor cabinet: 580 * 240 * 520mm
|
| Furnace body size |
800*550*750mm |
We also have medium and big size induction melting furnaces. The max capacity
reaches 20Ton or more based on each customer’s requirement.
4.Supply Scope of Industrial Steel Melting Furnace
|
IGBT power source, 1 set;
Foot switch, 1 pc;
Connection wire 2pcs; single wire 1 pc;
Industrial metal steel melting furnace body 1set;
flexible connection cable 2pcs;
Protective cap 1 set; protective gloves 1 pair;
User manual 1 copy;
|
