40KG Cast Iron Steel Induction Melting Furnace Heater Medium Frequency Type
1. How induction melting furnace works
The tilting type medium frequency industrial furnace melting is uer friendly since
it is very easy in operation.
1.1 Turn on the general power switch.
1.2 Charge the raw material.
1.3 Press power supply button.
1.4 Adjust the power to maximum value.

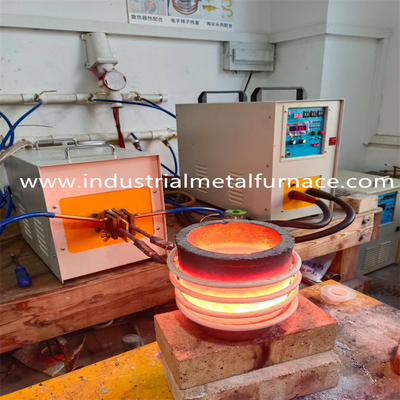

1.5 The hydraulic tilting melting furnace heats up and the metal
starts to be melted.
1.6 Within 2-10 minutes, the metal melting process is finished.
Press stop button.
1.7 Pour the molten metal liquid into the molds.
170A rotary furnace for cast iron melting - 3

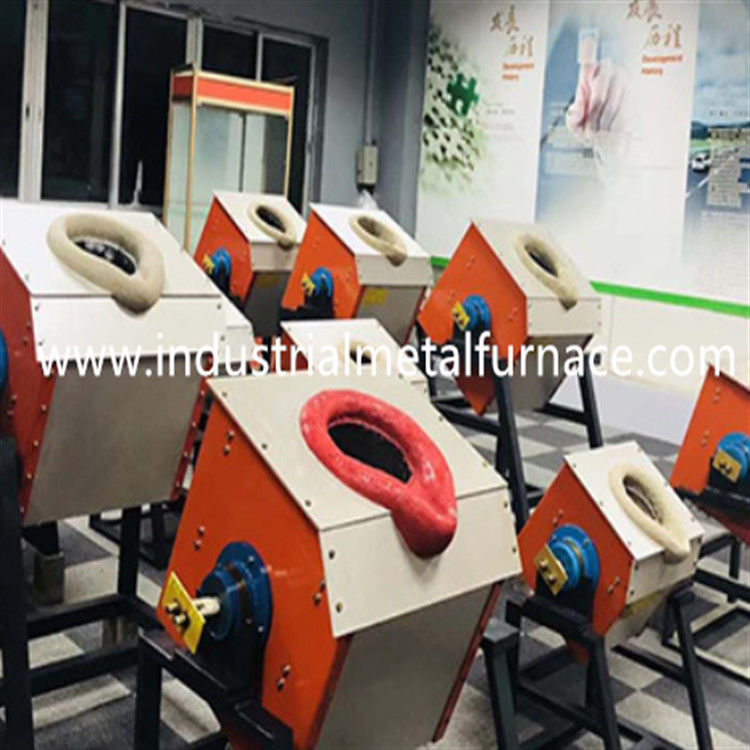

2. Company Product Range
Our company can supply the medium frequency induction melting
furnace, cabinet type gold melting furnace,
aluminum melting furnace,copper melting furnace, steel melting
furnace, gas fired crucible melting furnace,
oil fired crucible melting furnace, tower type aluminum melting
furnace, etc.
3. Technical Parameters of Metal Melting Furnace
| Working Power | 90KW |
| Input voltage range | 70V-550V |
| Output oscillation frequency | 1-20KHZ |
| Output current | 25-170A |
| Weight |
Main machine: 70kg; Control cabinet: 60kg |
| Dimension |
Furnace: 940*650*1100mm(L*W*H); Power supply: 820*420*890mm(L*W*H); Control cabinet: 550*400*510mm (L*W*H) |
| Capacity | 40KG cast iron |
| Cooling type | Water cooling |
| Cooling water requirement |
≥0.3Mpa ≥20L/min |
| Supply Scope |
Heating power source, 1 set; Foot switch, 1 pc; Connection wire 2pcs; single wire 1 pc; Metal melting furnace body 1set; flexible connection cable 2pcs; Protective cap 1 set; protective gloves 1 pair; User manual 1 copy; |
