Tilting 70KW Iron Melting Induction Furnace 25kg Iron Teel Shell Melting Furnace

Name: Tilting 70KW Iron Melting Induction Furnace 25kg Iron Teel Shell Melting Furnace
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: 70KW
Availability: InStock

Brand Name:	WONDERY
Model Number:	70KW
MOQ:	1SET
Price:	TO BE NEGOTIATED
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, D/P, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name Of Equipment:

Induction Melting Furnace

Capacity:

25kg Cast Iron

Crucible Type:

Graphite

Power:

70KW

Application:

Melting Cast Iron, Steel

Customized Service:

Yes

Max Temperature:

2000 Degree Celcius

Power Module:

IGBT Module

Packaging Details:

Pallet

Supply Ability:

1000 SETS PER MONTH

Highlight:

wondery Tilting iron melting induction furnace

70KW iron melting induction furnace

25kg iron steel shell melting furnace

Product Description

Tilting 70KW Medium Frequency Induction Melting Furnace for Cast Iron Steel Copper Metal Scrap

1. Application

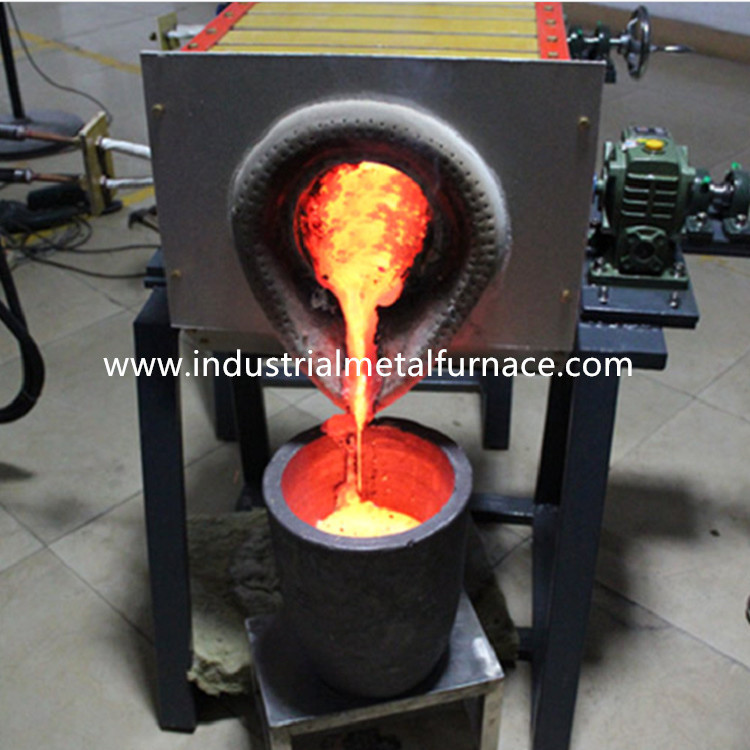

The induction metal melting furnace is a fast tilting type induction furnace for melting various metals such as

steel, iron, copper, silver, aluminum, zinc, lead, etc. It has the advantages of small size required, safety, intelligent

temperature control, and fast melting efficiency.

2. Technical Parameters of Induction Furnace

Output power	70KW	Capacity	25KG cast iron
Input voltage range	340V-430V	Cooling type	Water cooling
Output oscillation frequency	1-20KHZ	Cooling water requirement	0.8~0.16Mpa 9L/min
Max input current	105A	Weight	Main machine: 80kg; Control cabinet: 60kg
Output current	400-3500A	Dimension	Main machine: 725600900mm(LWH); Control cabinet: 670420500mm (LWH)

3.Supply Scope

3.1 Heating power source, 1 set;

3.2 Foot switch, 1 pc;

3.3 Connection wire 2pcs; single wire 1 pc;

3.4 Furnace body 1set; flexible connection cable 2pcs;

3.5 Protective cap 1 set; protective gloves 1 pair;

3.6 User manual 1 copy;

4.How induction melting furnace works

The metal melting furnace is easy in operation.

Turn on the general power switch.

Put in the raw material.

Press power supply button.

Adjust the power to maximum value.

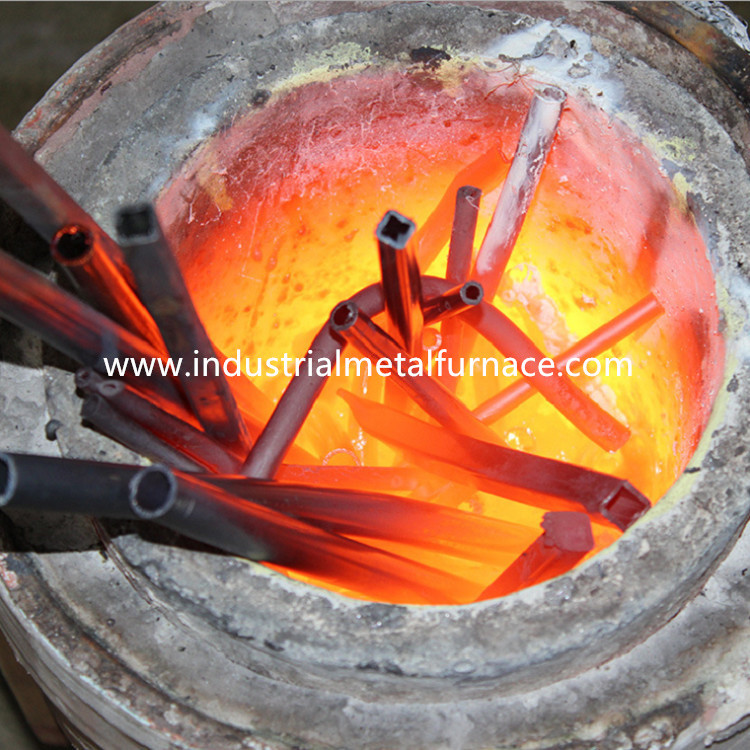

Melting starts.

Press stop button.

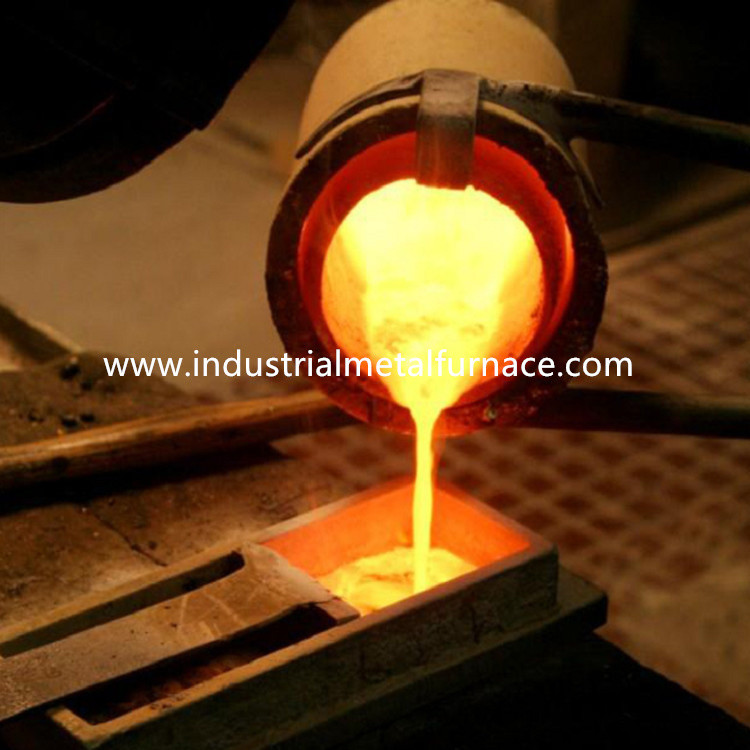

Pour the molten liquid into the molds.
