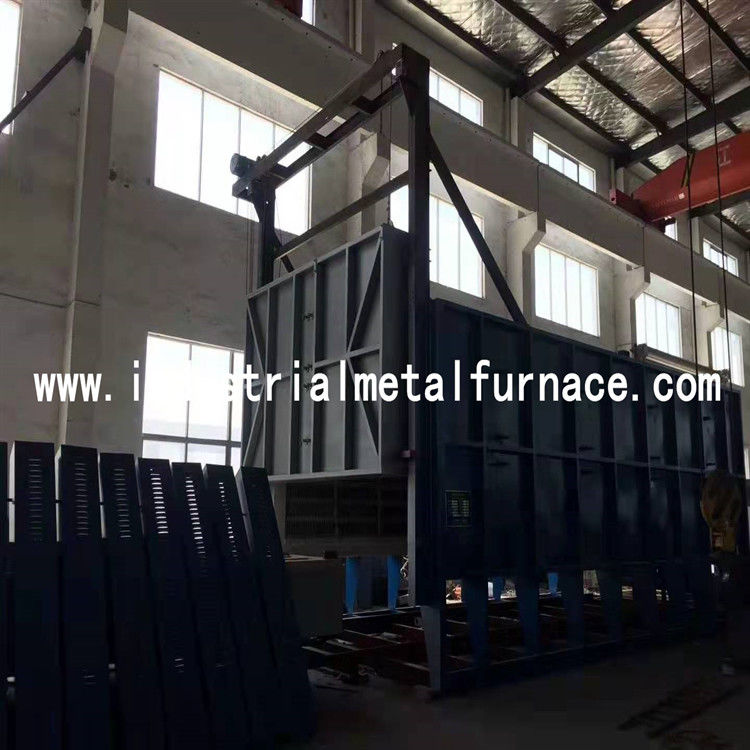

WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. presents its high-performance Gas Fired Bogie Hearth Furnace, designed for large-scale heat treatment processes including annealing, normalizing, and tempering of steel parts, pressure pipes, and heavy castings. With a generous effective working dimension of 8000mm (L) x 3000mm (W) x 3000mm (H) and a single-load capacity of 40 tons, this furnace is engineered for industrial applications demanding precision, uniformity, and efficiency.

The furnace features an advanced combustion system equipped with eight 630KW Guangzhou Sinon high-speed pulse burners, ensuring complete fuel combustion and excellent temperature uniformity within ±10°C during the insulation stage. The intelligent control system, centered on a Siemens S7-1500 PLC and a user-friendly HMI touchscreen, allows for programmable heating rates, automatic temperature control via PID algorithms, and comprehensive data logging. Key safety systems include multi-layer flame monitoring, pressure alarms, automatic gas shut-off valves, and full mechanical interlocking for the bogie and furnace door.

Constructed with a robust steel frame and an energy-saving all-fiber lining (300mm functional fiber modules + 100mm backing blanket), the furnace ensures minimal heat loss, with surface temperature rise maintained below 45-50°C above ambient. The design emphasizes operational safety, environmental compliance, and low energy consumption, making it an ideal industrial heat treatment furnace for demanding manufacturing sectors.

Key Specifications Table:

Core Advantages:

• High Efficiency & Uniformity: Pulse combustion technology and multi-zone control ensure superior temperature distribution and heat transfer.

• Advanced Automation: Fully automated operation with programmable process curves, real-time monitoring, and data management via industrial PC software.

• Robust Safety: Comprehensive protection systems including flameout detection, pressure interlocks, emergency stop, and fail-safe gas valves.

• Energy Saving: Full-fiber insulation, air preheating, and precise air-fuel ratio control significantly reduce fuel consumption.

• Durable Construction: High-quality materials including heat-resistant cast iron guard plates and a sturdy bogie system ensure long service life.

This bogie hearth furnace from WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. represents a reliable, high-capacity solution for stress relieving, metal annealing, and other critical heat treatment processes, enhancing productivity and product quality in heavy industrial operations.
