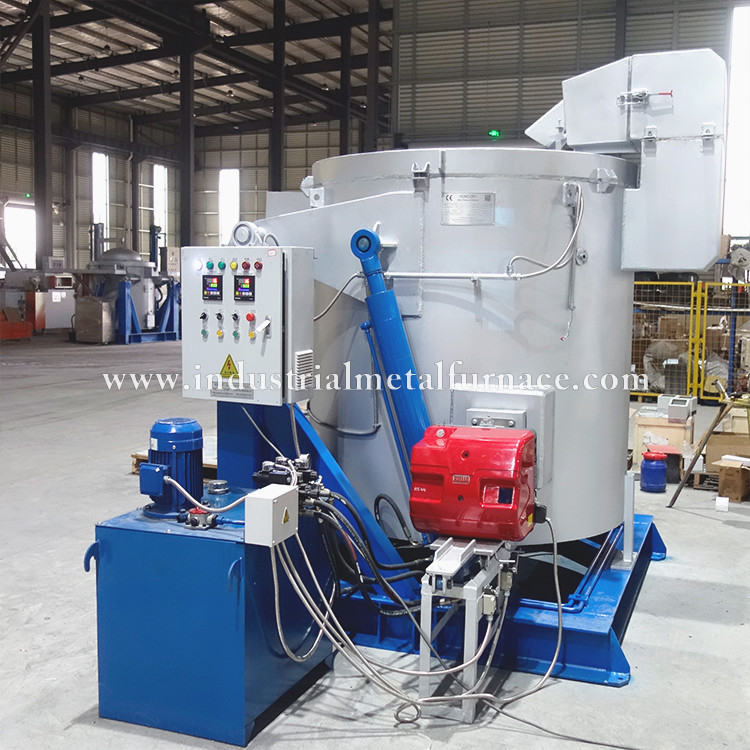

Oil Fired 500KG Tin Melting Furnace with Graphite Crucible for Industrial Applications

WDL-GY-500 Type Oil Fired 500KG Tin Melting Furnace , Graphite Crucible Melting Furnace

The WDL-GY-500 Type Oil Tin Melting Furnace is a high-performance solution designed for melting and holding tin, offering exceptional energy efficiency and precision in a variety of industrial applications. Ideal for industries involved in metal casting, tin alloy production, and foundries, this furnace ensures consistent, high-quality tin melting with reduced fuel consumption.

Applications of the WDL-GY-500

The WDL-GY-500 is specifically designed for continuous melting of tin. Its versatile performance makes it suitable for various industrial environments where large-scale, high-quality tin melting is required. With its crucible capacity of 500 KG and a melting capacity of up to 300 kg/h, the furnace ensures rapid and consistent production, making it an optimal choice for operations with high-demand output.

This furnace operates with light diesel oil, which is known for its efficient combustion properties and cost-effectiveness. The fuel oil consumption is designed to be economical, at approximately 40-50 kg per ton of tin under rated working conditions. Whether you're processing tin for casting or alloy production, this furnace guarantees both precision and efficiency throughout its operation.

Key Features and Technical Specifications

The WDL-GY-500 Type Oil Tin Melting Furnace comes with the following important technical specifications:

With a rated working temperature of 450°C and a temperature control accuracy of ±10°C, this furnace offers precise control over the molten tin. The continuous working feature ensures that production is maintained without interruption, optimizing both productivity and fuel efficiency.

Furnace Structure and Durability

The WDL-GY-500 is built for durability and long-lasting performance. The furnace shell is made from steel plates and sectional steel, providing a robust structure capable of withstanding high temperatures. The furnace cover is crafted from cast iron to enhance heat resistance and durability.

Inside the melting chamber, the refractory lining is constructed using once-forming casting material, which is known for its high strength and long service life. This material features a compression strength of 140 MPa at temperatures exceeding 110°C and a linear change rate of just 0.1%, making it ideal for high-temperature operations.

The heat insulation layer consists of Grade One silicate aluminum fiber and light refractory bricks, further reducing heat loss and improving energy efficiency.

Advanced Combustion System

The furnace is equipped with a European burner (Riello, Italy), which incorporates advanced features such as automatic ignition, flame detection, and temperature control. This ensures that the furnace operates efficiently, adjusting automatically to the desired temperature and fuel consumption, thereby maximizing operational efficiency.

Working Conditions

• Fuel Oil Supply: The furnace requires a continuous supply of fuel oil at the burner’s connection joint to maintain consistent performance.

• Control Power: The furnace operates on a 220V, 50Hz electrical supply.

Comprehensive Supply Scope

The WDL-GY-500 furnace is supplied with everything needed for operation:

• Furnace Body: 1 Set

• Burner (Riello, Italy): 1 set

• Electrical Control System: 1 set (includes cabinet, wires, thermal couplings)

• Graphite Crucible: 1 piece (easy worn part)

• Thermal Couplings: 2 pieces (easy worn parts)

• Manual: 1 copy

Post-Sales Service and Warranty

The WDL-GY-500 comes with a 1-year warranty that covers any faults caused by manufacturing defects. If any issues arise due to improper operation, repairs can be done at a minimal cost. Please note that easy-worn parts, such as graphite crucibles and thermal couplings, are excluded from the warranty.

Conclusion

The WDL-GY-500 Type Oil Tin Melting Furnace is an ideal solution for industries that require reliable, high-quality tin melting with minimal fuel consumption. With its advanced combustion system, precise temperature control, and durable construction, this furnace offers superior performance for continuous operations.

For more information or to discuss your specific requirements, feel free to reach out to us. We are committed to providing high-performance industrial solutions tailored to your needs.
