Name: Industrial 1050 Degree C Electrical Resistance Trolley Car Bottom Steel Plate Heating Furnace for Foriging
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: RT3-380-10
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Rated Heating Power: 380kw

Rated Temperature: 1000℃

Power Supply: 380V, 3-phase, 50Hz

Effective Working Size Of Furnace Muffle Tank: 4500×2700×700mm (L*W*H)

Name: Heating Furnace For Steel Plate Forging

Basic Infomation

Place of Origin: Jiangsu,China(Mainland)

Brand Name: WONDERY

Certification: CE

Model Number: RT3-380-10

Payment & Shipping Terms

Packaging Details: wooden case suitable for sea transportataion or nude package

Delivery Time: 60 working days

Payment Terms: L/C, T/T

Supply Ability: 200 Set/Sets per Year

Gallery

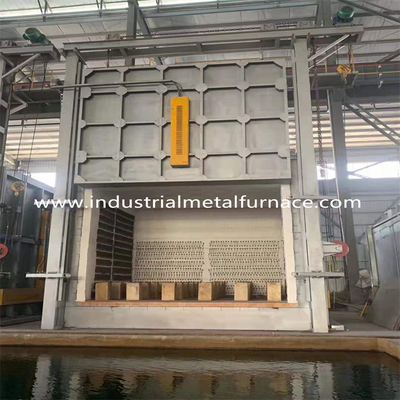

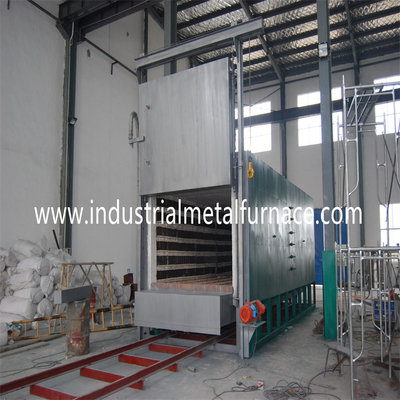

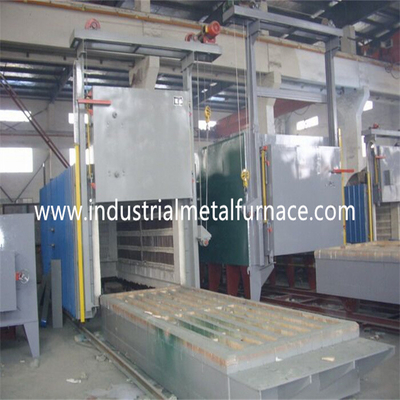

Industrial 1050 Degree C Electrical Resistance Trolley Car Bottom Steel Plate Heating Furnace for Foriging

Product Description

Industrial 1050 Degree C Electrical Resistance Trolley Car Bottom Steel Plate Heating Furnace for Foriging

1.Application

An Electrical Resistance Forging Heating Furnace for steel plates is a specialized industrial furnace that

uses electrical resistance heating to rapidly and uniformly heat steel plates to the required forging temperature

(typically around 950°C–1050°C). This process prepares the steel for subsequent forging operations by

improving its plasticity and reducing forming resistance.

2.Main Technical Parameters

No.	Name	Technical Parameters
1	Rated Power	380 kW (1-100%) adjustable
2	Power supply parameters	380V , 3 - phase , 50Hz
3	Rated temperature	1050 ℃, common temperature 930-980 ℃
4	Empty furnace heating speed	≤ 1.5 h
5	Number of control zones	Independent temperature control for 4 zones , front, back, left and right
6	Effective working size	4500×2700×700mm ( length×width× height )
7	Furnace body dimensions	5300 × 3700 × 2200 mm ( length × width × height )
8	Trolley out of the area	~12500mm length
9	Heating element connection	YYYYYY
10	Temperature uniformity	± 10 ℃
11	Instrument temperature control accuracy	±1℃
12	Empty furnace power loss	≤1 0 %
13	Temperature control method	Thyristor · PID regulator · Japanese island meter 32-stage temperature control, with 485 communication interface and 14- inch touch screen The touch screen can record historical data for more than one year , store more than 10 processes, and has over-temperature alarm.
14	Temperature rise of furnace side outer wall	＜ 40 ℃
15	Heating element material	0Cr21AL6Nb (strip)
16	Furnace bottom material	Ni7N heat-resistant steel total thickness 30mm
17	Loading method	The workpiece is hoisted on the trolley surface, and the trolley is driven into the heating
18	Furnace lining form	Adopt high temperature refractory fiber structure
19	Furnace door opening and closing form	1 set of 2- ton electric hoist moves up and down, and its own weight compresses and seals
20	Trolley entry and exit form	1 set of 5.5 KW cycloidal pinwheel reducer drives the wheel in and out
21	Trolley travel power supply mode	Metal tank chain

3.Structural Introduction

RT3-380-10 trolley type heat treatment furnace is mainly composed of furnace shell _,furnace lining ,

furnace door and furnace door lifting mechanism, furnace door pressing and sealing mechanism;

load - bearing trolley and trolley traction mechanism, furnace body and trolley sealing mechanism;

heating elements and fixing devices; furnace temperature automatic control system ; circulating

fan system , etc. For heating steel plates, each steel plate should be separately placed. They

can’t be stacked one by one directly.
