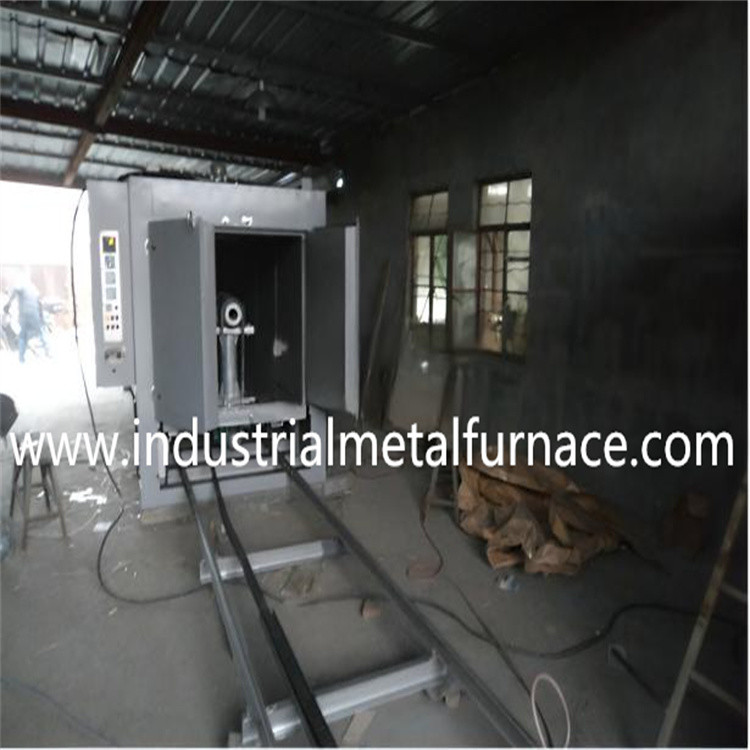

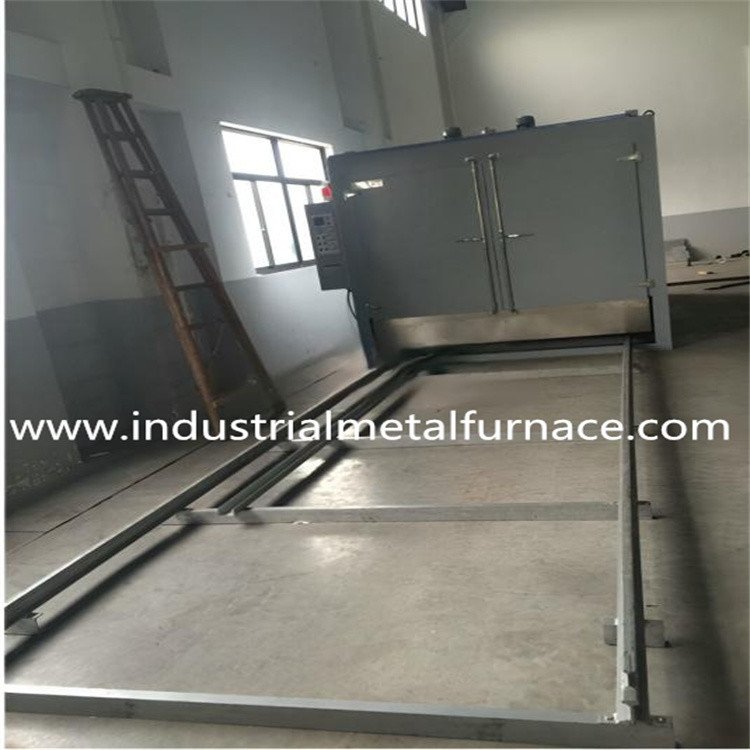

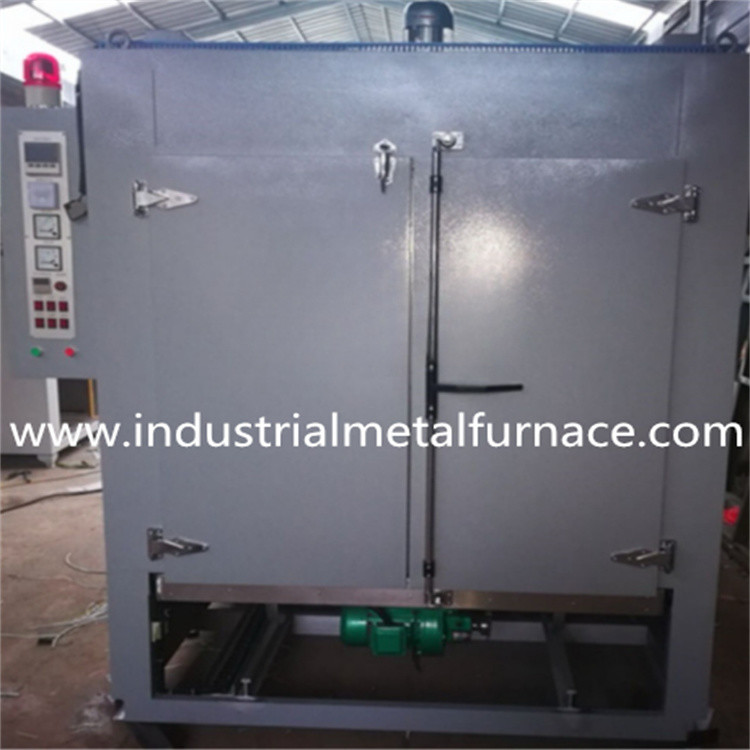

Electrical Heating Trolley Drying Oven For Metal Parts

Brand Name:	WONDERY
MOQ:	1 Set/Sets
Price:	TO BE ENGOTIATED
Delivery Time:	60 days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu,China(Mainland)

Certification:

Blower Power:

2800W

Studio Size:

6000*1600*1600 (depth*width*height) Image Device Size

Temperature Control Accuracy:

±1℃

Temperature Uniformity:

±3℃

Temperature Range:

Room Temperature RT~300℃(can Be Customized)

Studio Material:

201 Stainless Steel

Packaging Details:

wooden case suitable for sea transportataion or nude package

Supply Ability:

200 Set/Sets per Year

Highlight:

Electrical Heating Trolley Drying Oven

Metal Parts Trolley Drying Oven

Product Description

Electrical Heating Trolley Drying Oven for Metal Parts

Basic parameters of the equipment:
External Material:			Q235 cold rolled steel plate

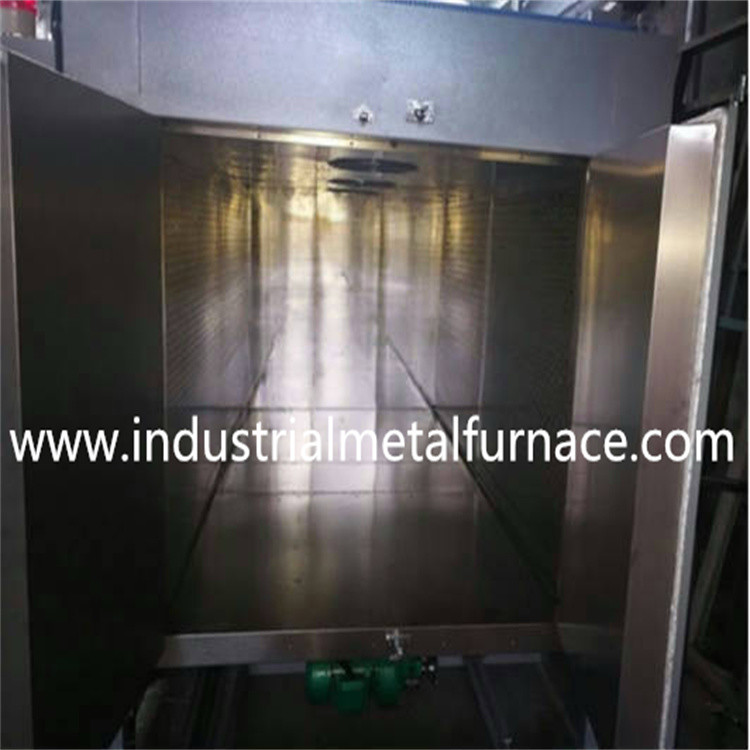

Studio Material:			201 stainless steel
Studio size:			600016001600 (depthwidthheight) image device size
Equipment bottom structure:			Load-bearing feet, wheels and adjustment feet, Foma wheels (customer-selected)
Temperature range:			Room temperature RT~300℃(can be customized)
Heating material/power:			Surface low-load metal heating element, service life 30,000 to 50,000 hours
Blower power:			2800W
Temperature uniformity:			±3℃ (tested after 20 minutes of no-load constant temperature)
Temperature control accuracy:			±1℃

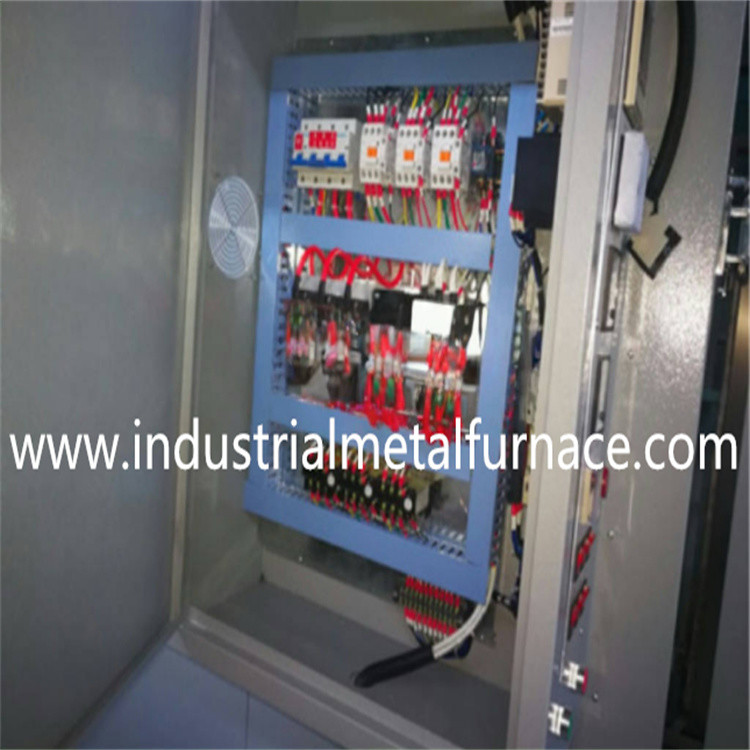

Control method:			The SSR module controls the output to achieve fine PID temperature control. (It covers the impact of large instantaneous current impact and large control fluctuation caused by traditional zero-crossing triggering, and can make the output voltage change smoothly and linearly, and automatically adjust the output power size according to the temperature error, so that the internal temperature of the equipment is stable and the performance is excellent.)
Air supply mode:			Forced horizontal air supply/strong pressure horizontal air supply
Timing device:			HS48S-99.99 timing device can be switched on and off manually or automatically. When the temperature reaches the set temperature, the timing starts. When the time reaches the set range, the heating power is cut off. A buzzer alarm is sounded.
Secondary mechanical protection:			Prevent the main temperature control of the equipment from failing, causing the temperature to continue to rise. When the secondary protection setting value is reached, the heating is cut off and an audible and visual alarm is issued.
Studio Configuration:
Control optional accessories:			Recorder, touch screen control, ventilation and smoke exhaust, timer power on and off, remote control
Studio accessories:			Trolleys, pallets, partitions, mesh
Other requirements:			We can design and manufacture equipment according to the actual size and function requirements of customers.
	※Our company specializes in non-standard equipment manufacturing and design※: (depthwidthheight)
	model	Liner size		External dimensions	Equipment power (kw)	Voltage(V)
	WDL304-1	350450450		50010701020	2.4	220/380
	WDL304-2	450550550		65011201020	3.6	220/380
	WDL304-3	500600750		75012001390	5	220/380
	WDL304-4	8008001000		105014001720	9.75	220/380
	WDL304-5	100010001000		125014001720	12.75	380
	WDL304-6	100012001200		125016001980	16	380
	WDL304-7	100012001500		125016002280	19.5	380
	WDL304-8	120015001500		145019002280	23.2	380
