300 to 1000 kg Oval Gas Fired Crucible Melting Furnace Aluminum Scraps with Recuperator

300 to 1000 kg Oval Gas Fired Crucible Melting Furnace Aluminum Scraps with Recuperator

Brand Name:	WONDERY
Model Number:	WDL-RG-300 500 800 1000
MOQ:	1SET
Price:	TO BE NEGOTIATED
Delivery Time:	35 WORKING DAYS
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name of equipment:

Furnace For Melting Aluminum

Melting Capacity:

300 - 1000kg

Crucible Brand:

Baidun, China

Fuel Type:

LPG, Natural Gas

Temperature Control Accuracy:

± 5 ℃

Crucible Shape:

Oval

Packaging Details:

PLYWOOD CASE PACKAGE

Supply Ability:

1000 SETS PER YEAR

Highlight:

Gas Fired Crucible Melting Furnace

1000 kg Crucible Melting Furnace

Aluminum Scraps Crucible Melting Furnace

Product Description

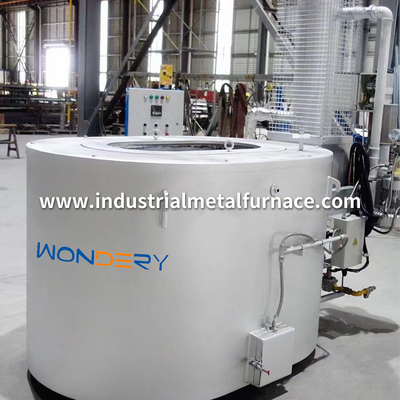

300 to 1000 kg Oval Gas Fired Crucible Melting Furnace Aluminum Scraps with Recuperator

1. Features

1.1 The crucible melting furnace lining is of the once forming casting material, which has a good heat

preservation effect and a fast temperature rising speed. The wall temperature rise is ≤ 40℃.

1.2 The melting furnace is equipped with one thermal couple protected by the silicon nitride outer pipe,

and this thermal couple could directly measure the aluminum liquid.

1.3 The furnace adopts Baidun brand graphite crucible, which has a good thermal conductivity, a long life,

and no iron hyperplasia.

1.4 The furnace is equipped with liquid leak alarm, over-temperature alarm and other functions to ensure

the safety of equipment and operation.

1.5 The industrial metal melting furnace is equipped with the recuperator which could preheat the combustion

supporting air and saves the gas energy consumption.

2. Supply Scope

1 furnace body

1 burning system (split type);

1 set of high-pressure fan;

1 automatic temperature controller

2 thermocouples (easy worn parts)

1 oval graphite crucible (including baffle)

1 preheater (also called as recuperator)

Operation manual 1 copy

300 to 1000 kg Oval Gas Fired Crucible Melting Furnace Aluminum Scraps with Recuperator 0

3.Technical Parameters

Model	RG-300	RG-500	RG-800	RG-1000
Crucible capacity	300Kg	500Kg	800Kg	1000Kg
Power of burner	150KW	230KW	320KW	320KW
Fuel type	natural gas, 8400Kcal/m³, working pressure: 5KPa(500㎜H₂O)
Furnace rated temperature and control accuracy	850 ℃ (atmosphere) ; ± 5 ℃ (temperature of aluminum liquid at holding stage)
