Induction Copper Melting Furnace Gravity Casting 380V

Brand Name:	WONDERY
Model Number:	WDL-BW-200
MOQ:	1SET
Price:	TO BE NEGOTIATED
Delivery Time:	45 WORKING DAYS
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Copper Capacity:

1500kg

Melting Rate:

500kg Per Hour

Power Supply:

380V 3P 50HZ

Rated Working Temperature:

1250℃

Water Jacket:

1Cr18Ni9Ti(321)

Daily Output:

9-10t

Packaging Details:

PLYWOOD CASE

Supply Ability:

1000 SETS PER MONTH

Highlight:

Induction Copper Melting Furnace

Gravity Casting Copper Melting Furnace

380V Copper Melting Furnace

Product Description

Gravity Casting Induction Copper Melting Furnace

1. General description

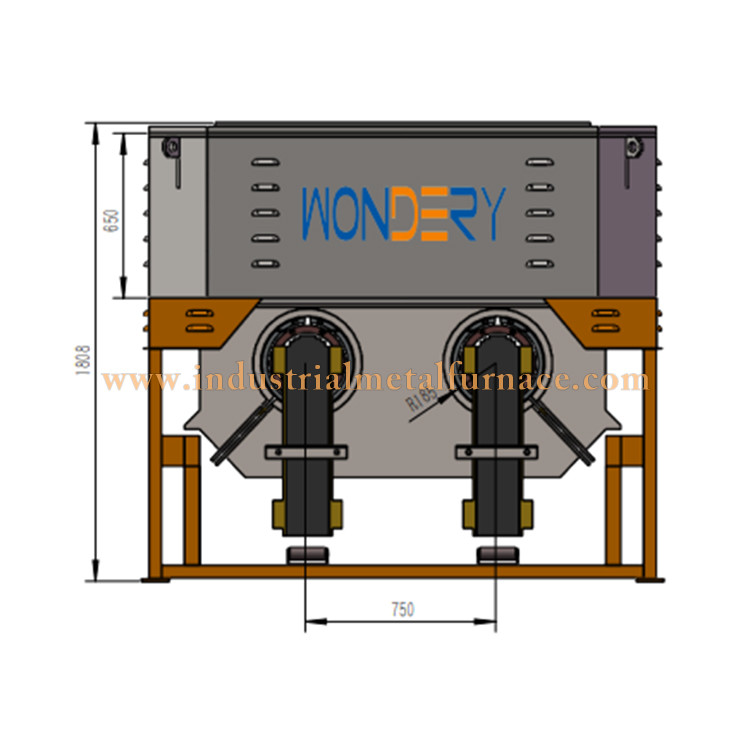

The gravity copper casting furnace adopts the two melting pool design and the two induction body structure.

The advantages of this structure are to balance the temperature of the melting pool and all parts of the

furnace to achieve the energy-saving. This induction melting and holding furnace is a continuous type,

and has one melting chamber and one holding chamber separately.

Name: 500kg/h power frequency cored induction casting furnace

Purpose: melting qsn65 ~ 1.0 tin bronze, red copper and brass ingots.

Copper Casting Furnace for Gravity Casting Process:

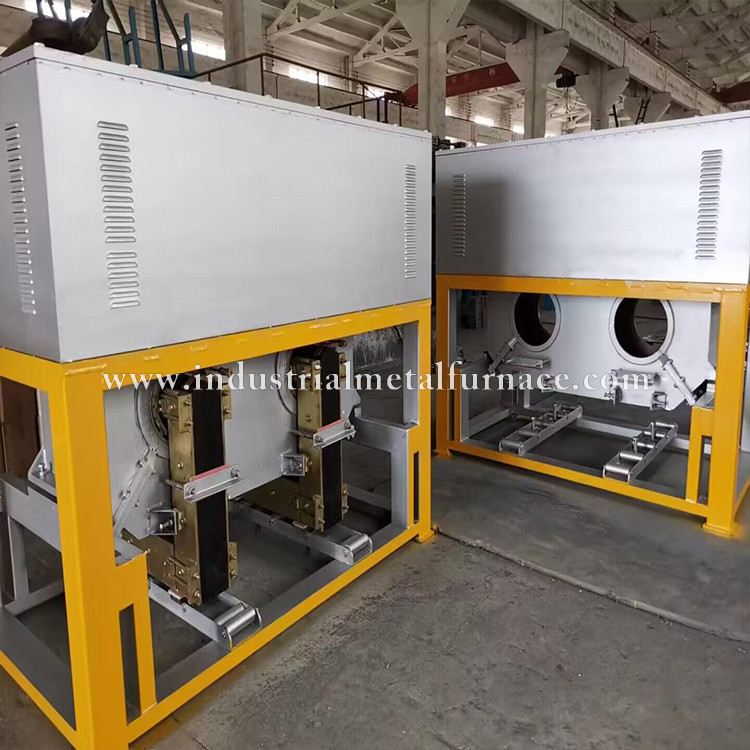

Induction Copper Melting Furnace Gravity Casting 380V 0

2. Main technical data

Total power: 130 ~ 150KW

Daily output: 9-10t (24h working);

Rated capacity: 0.5T

Minimum capacity (i.e. melting weight): 0.5T

Rated total capacity: 1.5T ~ 1.8T

Rated power: 130kW

Power supply power: 240kVA

Rated voltage of inductor: 380V

Number of inductor phases: 1

Sensor connection method: Y

Inductor frequency: 50Hz

Melting rate: 0.5t/h

Unit power consumption: 130kwh / T

holding power: 75KW

Rated working temperature: 1250 ℃

Power factor: ± 0.9-1 (after compensation)

Cooling water consumption: 6t / h

3. Installation

3.1 The copper induction melting furnace foundation provided by the manufacturer is only for users' reference.

3.2 The installation dimension of each equipment shall be checked with the physical object, and the embedded iron

shall be reserved on the foundation drawing.

3.3 Check according to the waterway system, the waterway shall be unobstructed, and all pipe joints shall be free

of leakage.

3.4 Connect the cable of the inductor and check whether the waterway and circuit connection are correct.

3.5 The insulating plate at the opening of the water-cooling jacket of the cooling inductor must be installed to prevent

the water-cooling jacket from forming a closed loop.

3.6 When assembling the iron core, use the adjusting screw of the furnace frame to make it reach the central position.
