3000mm 50Hz Heat Treatment Furnace Hairpin Bender Machine 3000mm

Brand Name:	WONDERY
Model Number:	BWJ-3000
MOQ:	1SET
Price:	TO BE NEGOTIATED
Delivery Time:	3-5 WORKING DAYS
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name of equipment:

Hairpin Bender

Hairpin Length:

100-3000mm

Tubing Diameter:

O.D. 9.52/12.7mm

Normal Voltage:

380V, 3P,50Hz

Equipment Color:

RAL 7032

Warranty:

12 Months

Packaging Details:

PALLET

Supply Ability:

1000 SETS PER MONTH

Highlight:

3000mm Heat Treatment Furnace

50Hz Heat Treatment Furnace 3000mm

hairpin bender machine 9.52mm OD

Product Description

High Quality Semi-automatic Hairpin Tube Bending Machine

1.Application

The hairpin bender machine is one of the necessary equipment of HVAC

production line. We have full range HVAC equipment such as high speed

fin press, progressive fin die, servo type tube expanding machine, semi

automatic and fully automatic hairpin bender, etc. This semi automatic

hairpin bending machine has the functions of manual feeding, servo

positioning, servo bending, and servo unloading. The hairpin length

ranges 200-3000mm. The tube diameter ranges from 7mm-16mm.

The production efficiency can be 2-5pcs per cycle.

2.Technical Parameters:

Tubing Diameter	O.D. 9.52/12.7mm
Hairpin length	200-3000mm
Working efficiency	9.52 2 + 12.7 2 tubes/cycle
Normal voltage	380V, 3P,50Hz

2.1 Structure Characters:

2.1.1 Compact design, Servo motor driving, Manual feeding, Operation in

manual or automatic mode For o

ption

2.1.2 Process of automatic operation mode is material feeding by manual

→mould tooling clamping→ oil spraying → bending → mandrel back →

clamp loose → unloading → unloading home → bending tooling home

2.2 Hairpin Leg difference in length less than 0.5mm

2.3 No obvious clashing, abnormal “bump”, corrugation neither other

deficiency. Ellipse less than 8%

2.4 Roundness tolerance of bend area <±.012”;

2.5 Parallel tolerance for the two straight legs ≤3%;

2.6 Running and operating smoothly.

3.Performance parameters of machine:

3.1. Working efficiency: 12 seconds per cycle taking 1 meter as example.

Pneumatic air consumption 3.5 cfm

3.2. Air cooled

4.Lubrication system

Expanding rod with lubrication holes and control by solenoid valve which allow oil

spray every setting seconds (Injection time can be adjusted)

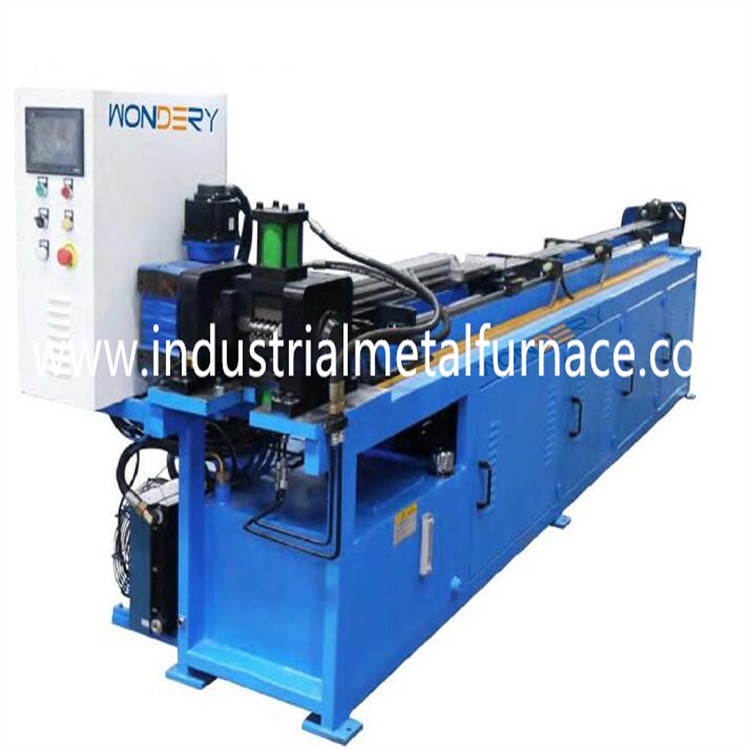

3000mm 50Hz Heat Treatment Furnace Hairpin Bender Machine 3000mm 0

5.Equipment Components

No.	Item	Brand
1	PLC	Mitsubishi brand
2	Servo motor	Mitsubishi brand
3	Servo driver	Mitsubishi brand
4	HMI	Mitsubishi brand
5	Hydraulic valve	Yuken brand
6	Pneumatic system	Airtac
7	Ball screw	ABBA brand
8	Electrical components	Schneider
Note:The above configuration can be changed to brands of equivalent level without noticing the customer due to component availability.

6.Spare parts

NO.	Item	Remarks
1	Bending mandrels	4 Pcs each size
2	Mandrel connecting rod	4 Pcs each size
3	Stripper tubing Only (not Assemblies)	2 Pcs each size
4	Sensor Limit Switch	2 Pcs
5	Bending Oil hose	2 Pcs
