500kg Cast Iron Industrial Induction Furnace

500kg Cast Iron Industrial Induction Furnace

Brand Name:	WONDERY
Model Number:	WDL-CX-500
MOQ:	1SET
Price:	TO BE NEGOTIATED
Delivery Time:	3-5 WORKING DAYS
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name of equipment:

Iron/Steel Induction Melting Furnace

Rated Tapping Temperature:

1480℃

Melting Time:

60±5%minutes/time

Power Consumption:

400±5%KWH/T

Rated Capacity:

0.5T

Furnace Type:

Reducer Tilting

Rated Power:

400KW

Raise Of Water Temperatur:

10℃

Packaging Details:

PALLET

Supply Ability:

1000SETS PER MONTH

Highlight:

500kg Industrial Induction Furnace

400KW Industrial Induction Furnace

crucible for melting cast iron 0.5T

Product Description

500kg Cast Iron Steel Melting Industrial Induction Furnace Hydrualic Tilting

1.What is a steel melting industrial induction furnace?

The steel melting industrial induction furnace is an efficient solution for

melting steel scraps. Our melting industrial induction furnaces are equipped

with hydraulic tilting arrangement for smooth tilting operation. The steel melting

furnace is of electric induction type, and the industrial induction furnaces can work

at a max temperature of 1900 degree celcius. Also the auxiliary equipment for the

melting industrial induction furnace can be provided such as

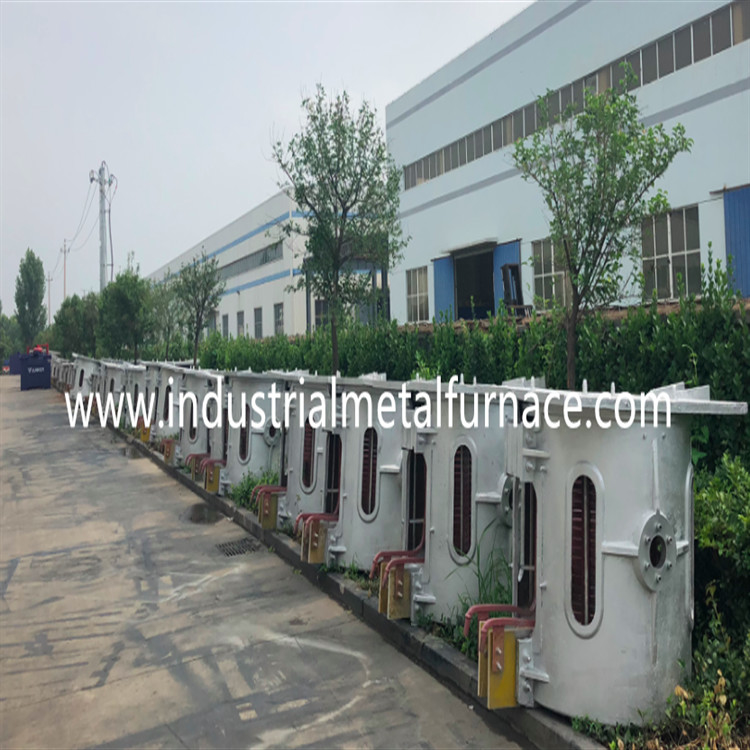

2. Aluminum Shell Induction Furnace Body

The aluminum shell uses aluminum frame structure, furnace body structure composed

of furnace fixed mount and furnace body, furnace fixed mount and furnace body takes

globality frame structure. Furnace body tilting is controlled by hydraulic system. The

aluminum shell industrial induction furnace for melting steel saves the cost compared

with the steel shell type melting industrial induction melting furnace.

3. Technical Data

Name		Units	Parameter	Remarks
Medium frequency industrial induction melting furnace
Rated capacity		t	0.5	Cast iron/Steel
Max capacity		t	0.6	The maximum loading depends on the lining of the furnace
Rated tapping temperature		℃	1480
Melting rate		t/h	0.5	Must meet the following conditions: 1)the tapping temperature ≤ 1600 ℃; 2) scrap collection rate ≥ 97%; 3)hot, continuous, feeding speed is compact; 4) insulation, except slag; light material packing briquettes, aniseed cutting; press the mechanical hand with the steel to the actual weighing as a benchmark
Melting time		minutes/time	60±5%
Power consumption		KWH/T	400±5%

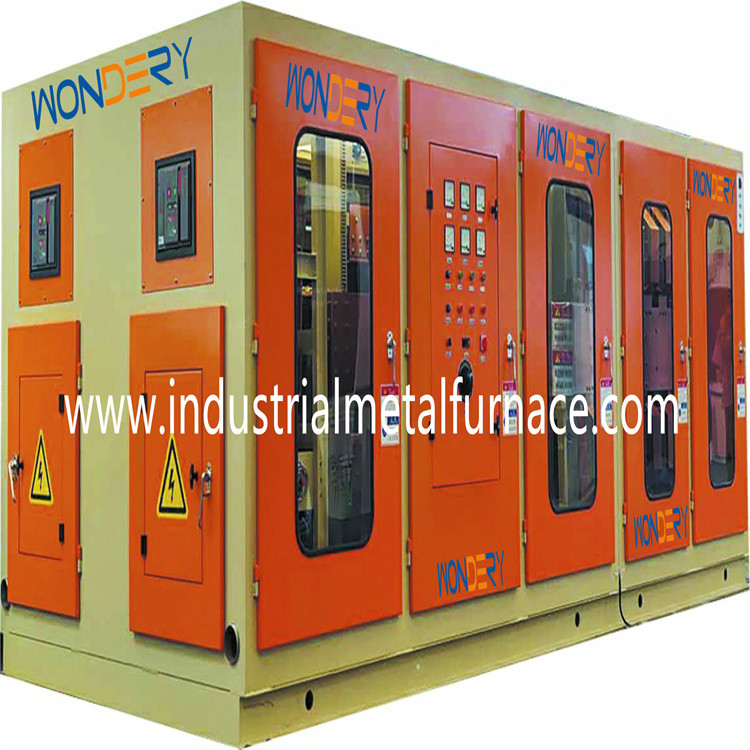

Power Cabinet
Rated power		KW	400	0-400 can be adjustable
Input Voltage		V	3N 380V	Mid-range
electric rectificate mode			6Pluse
Cooling water of power	Pressure of water	Mpa	0.1-0.12	Note: closed water inlet pressure 0.12Mpa, return water pressure 0.06Mpa;
	Inlet water temperature	℃	5~35
	Outlet water temperature	℃	≤45
	Raise of water temperature	℃	10
