220V 50mm Hot Dip Galvanizing Furnace Gas Industrial Heat Treat Oven

220V 50mm Hot Dip Galvanizing Furnace Gas Industrial Heat Treat Oven

Brand Name:	WONDERY
Model Number:	WDL-JXL
MOQ:	1SET
Price:	TO BE NEGOTIATED
Delivery Time:	3-5 WORKING DAYS
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name of equipment:

Zinc Galvanizing Furnace

Size:

Customized

Application:

Hot Dip Zinc Galvanizing

Furnace Temperature:

650°C

Power Supply:

380V/220V/50Hz

Customized service:

Yes

Zinc Kettle Material:

XG-08

Zinc Kettle Thickness:

50mm/60mm

Packaging Details:

PALLET

Supply Ability:

1000 SETS PER MONTH

Highlight:

220V Hot Dip Galvanizing Furnace

50mm Hot Dip Galvanizing Furnace

Gas industrial heat treat oven CE

Product Description

Industrial Large Capacity Gas Hot Dip Zinc Galvanzing Furnace with Customized Size

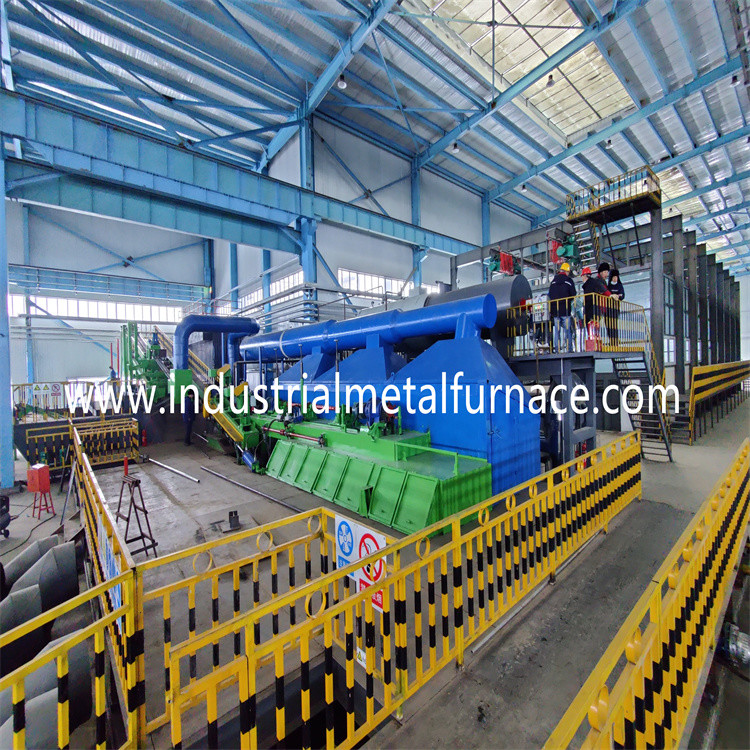

1. Composition of hot dip galvanizing furnace

The zinc galvanizing furnace involves a zinc kettle which is to keep molten zinc liquid.

And the parts are kept in the zinc kettle so as to be galvanized. The hot dip zinc galvanziing

furnace is composed of the following parts: zinc kettle, refractory cover plate, U shape furnace

shell, lining, flue, bottom support, gas burning system, electrical control system, leak alarm, etc.

2.Gas Burning System Parameters

Gas technical parameter:
1	LNG (Liquefied Natural Gas), calorific value: 8500Kcal/m³
2	Inlet pressure	300mbar
3	Furnace temperature	650°C
4	Preheat temperature	< 40°C
5	Power supply	380V/220V/50Hz
6	Control mode	Zone A/B big-small fire
7	Connect the natural gas pipeline to the front ball valve, turn DN65 to DN50 (DN50 is the front ball valve of the burner system)

3.Basic Parameters of zinc galvanizing furnace

No.	Item	parameter
1	Kettle size	Customized
2	Kettle thickness	50mm/60mm
3	Kettle material	XG-08
4	Volume	Customized
5	Working temperature	435℃-450℃
6	Fuel	LNG

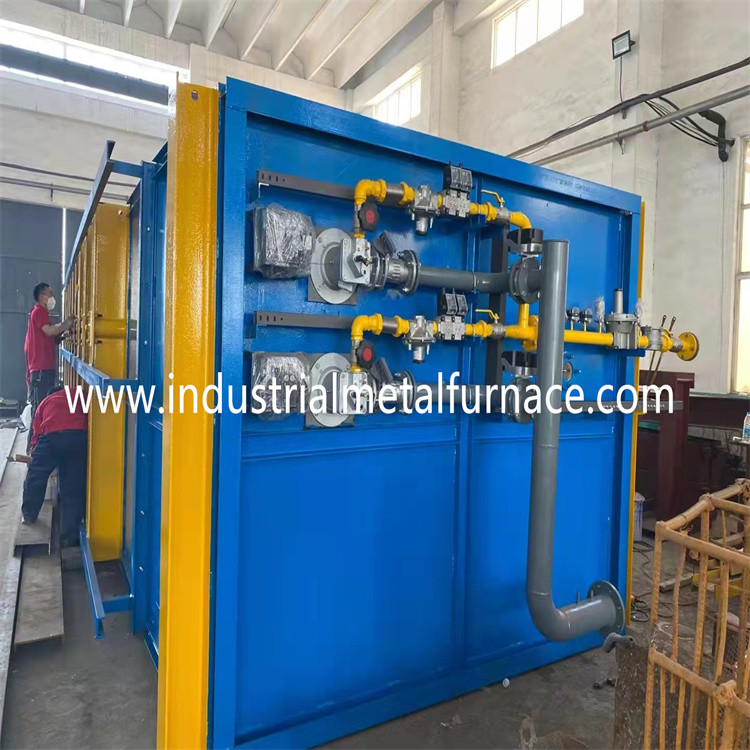

4. Furnace Burning System

The zinc hot dip galavanizing furnace employs the high-velocity pulse combustion system, and the burners

are placed in the diagonal position of the furnace, and the heat continuously surrounds the zinc kettle from

these two sides. The output power of the combustion engine can reach 170M/sec or more, so the temperature

rises rapidly in a cycling way. The heat conduction transfers heat to every point of zinc kettle, and it also

absorbs the heat generated by the combustion engine. The heat radiates evenly around the outer wall of

zinc kettle, from top to bottom, front to back, so it can increase heating efficiency and generate approximately

the same heat as heat conduction, which greatly increases the service life of zinc kettle. Under pulse control mode,

the output power of each zone can be continuously adjusted from low-power to high-power.
