160 To 1000 KG Per Hour Roller Continuous Belt Furnace Resistance Furnace Working Heat Treatment

160 To 1000 KG Per Hour Roller Continuous Belt Furnace Resistance Furnace Working Heat Treatment

Detail Information

Place of Origin:

CHINA

Certification:

Name of equipment:

Mesh Belt Furnace

Capacity:

160-1000kg/h

Furnace type:

Support Roller Type

Type:

Electric Resistance

Application:

Hardening, Carburizing And Carbonitriding

Customized service:

Yes

Rated temperature:

920 Degree Celcius

Voltage:

380 3 Phase 50HZ

Packaging Details:

PALLET

Supply Ability:

1000 SETS PER MONTH

Highlight:

Product Description

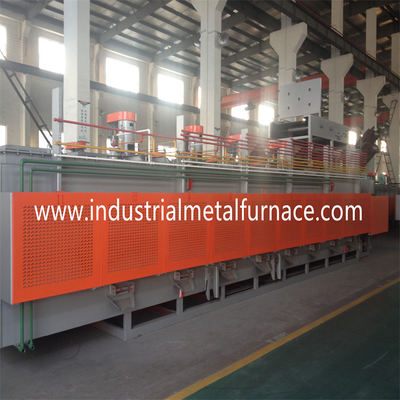

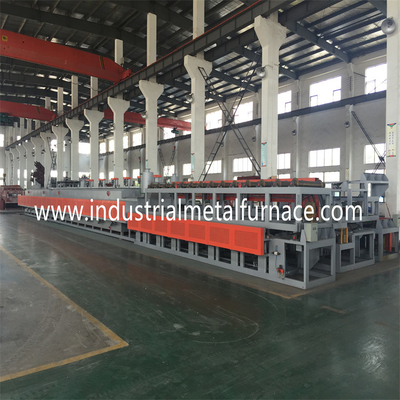

160 -1000 KG PER HOUR Roller Support Mesh Belt Furnace

Electric Resistance Furnace Heat Treatment Furnace

1. Applications

Widely applicable to the hardening, carburizing and carbonitriding etc. of the mechanical parts of

automobile fittings, fastening, chains, bearings and tools etc. and realize continuous heat-treatment

processes of automatic loading rinsing, heating, quenching, rinsing, tempering, dyeing, drying, and

oil-covering etc. The mesh belt furnace supplier is controlled by computer.

2. Heat Treatment Furnace’s Features

Easy operating, higher efficiency, energy saving, stable product quality, advanced control.

3. Main Specifications and Parameters

Model	Rated Power (Kw)	Rated temperature (degree celcius)	Working size (mm)	Productivity (kg/h)
WDL-RCW-1A	100	920	400400100	160~200
WDL-RCW-2A	110	920	4004700100	180~250
WDL-RCWA-2A	120	920	5004000100	180~250
WDL-RCWA-2B	130	920	5004700100	250~300
WDL-RCWA-3	160	920	6004700100	300~350
WDL-RCWA-3A	160	920	5006000100	300~350
WDL-RCWA-4	180	920	6006000100	350~420
WDL-RCWA-4A	180	920	8004700100	450~520
WDL-RCWA-5	220	920	8006000100	450~520
WDL-RCWA-6	300	920	8007600100	550~720
WDL-RCWA-7	380	920	10007600100	880~1000
