products details

Home Products

Rotary Industrial Aluminum Melting Furnace

Brand Name:	WONDERY
Model Number:	WDL-RGR-300
MOQ:	1SET
Price:	TO BE NEGOTIATED
Delivery Time:	3-5 WORKING DAYS
Payment Terms:	L/C, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Name of equipment:

Rotary Furnace

Furnace type:

Rotary Type

Furnace:

Graphite Crucible

Wall Temperature:

≤ 40℃

Temperature Control:

±5℃

Furnace Body:

2 Crucible Type

Packaging Details:

PLYWOOD CASES

Supply Ability:

1000 SETS PER MONTH

Highlight:

500kg/h Industrial Aluminum Melting Furnace

800kg/h Industrial Aluminum Melting Furnace

graphite crucible rotary aluminum melting furnace

Product Description

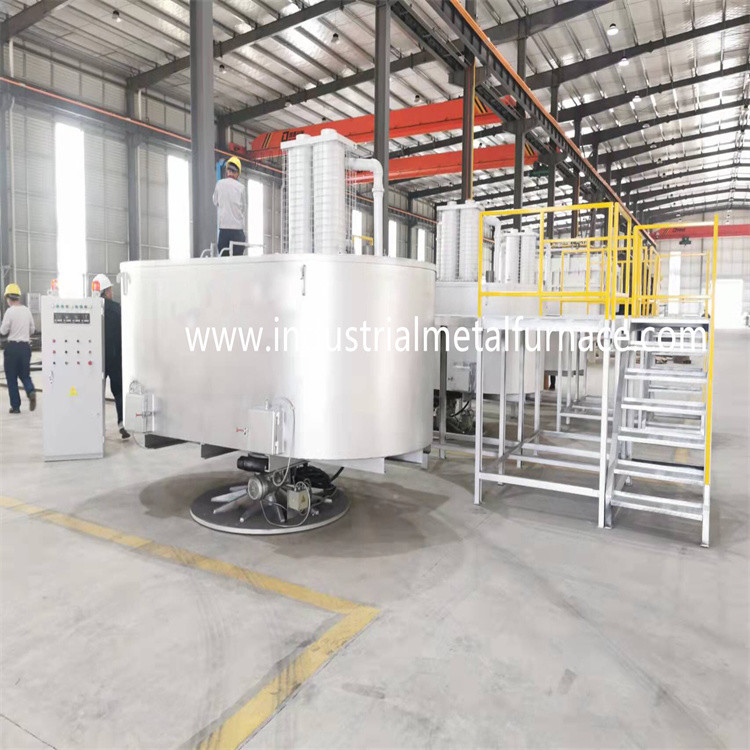

Industrial Aluminum Scraps Rotary Type Aluminum

Melting Furnace Double Crucible Type

1. Application

1.1 The rotary melting furnace is of double crucible design. The rotary

melting furnace body can manually

or electrically rotate for alternative use.

1.2 The rotary type crucible melting furnace lining adopts imported refractory

fiber module or casting material,

which has the characteristics of good heat preservation effect, low heat storage,

and fast heating speed. The

wall temperature rise is ≤ 40℃.

1.3 The rotary type crucible melting furnace adopts the Taiwan brand temperature

controller with PID control.

The temperature control accuracy reaches ±5℃.

1.4 The rotary type crucible melting furnace is equipped with one thermal couple

protected by the silicon nitride

outer pipe, and this thermal couple could directly measure the aluminum liquid.

1.5 The rotary type crucible melting furnace adopts Vesuvius brand graphite

crucible, which has a good thermal

conductivity, a long life, and no iron hyperplasia.

1.6 The rotary type crucible melting furnace is equipped with liquid leak alarm,

over-temperature alarm and

other functions to ensure the safety of equipment and operation.

1.7 The rotary type 2-body crucible melting furnace greatly improves the

working efficiency. It is widely

used in the die casting operation.

2. Model Table

Model	Maximum Melting Rate (kg/h)	Furnace body
Model	Maximum Melting Rate (kg/h)	Furnace body
WDL-RGR-300	300	2 crucible type
WDL-RGR-500	500	2 crucible type
WDL-RGR-800	800	2 crucible type
